SMALL CABINETS QM

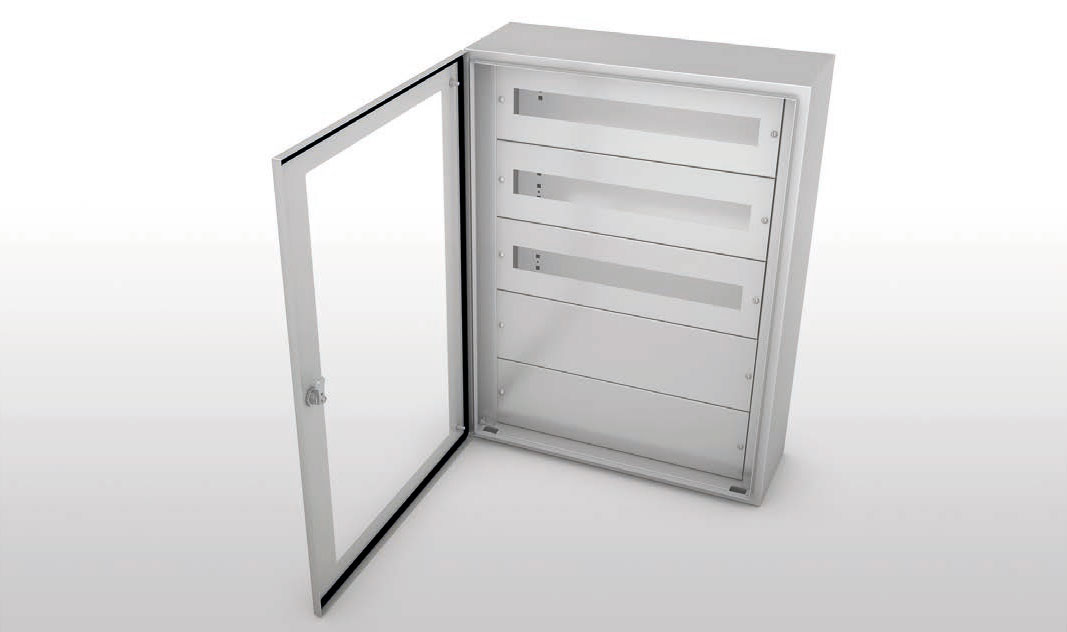

•    The new QM series is designed to accommodate modular equipment.
•    Made of En 1.4301 (TYPE 304L) s/s finely satin finished and protected on 1 side.
•    Special attention was paid, in the design stage, to the details permitting to streamline and speed up wiring, without disregarding aesthetic, which has always been the hallmark of our work.
•    The enclosure is obtained from a sheet suitably shaped on the front side to obtain the “seal labyrinth” between enclosure and door.
•    The door, press-forged, features 3+3 shatterproof laminated glass to meet safety and long lasting unalterability requirements
•    Single central lock, twin-comb type, standardized Ø 3 for Low Voltage. Chromium-plated with attachment for 3-point lock, starting from model QM096.
• Inner hinges, s/s, 120° opening according to CEI EN 60204-1 recommendations .
• Seal of foamed polyurethane.
• Inner plate of sendzimir galvanized sheet,  pre-drilled for DIN guides assembling. The assembling of guides and the relevant modular switches can be done in the factory to facilitate introduction of the pre-assembled frame  into the cabinet. The modular panels are secured to two pre-drilled side uprights fixed to the enclosure.
• Fairlead plate not included.
• Prearranged for earthing according to the regulations in force.
• Protection degree : IP66 with closed door, IP20 with open door.
• Back: prearranged with four M6 inserts for wall mount



CABINETS KIND OF DOOR MOUNTING PLATES SKETCH
ART/ITEM L H P X Y
QM048 590 340 220 with glass 542 275 DOWNLOAD
QM072 590 490 220 with glass 542 425 DOWNLOAD
QM096 590 640 220 with glass 542 575 DOWNLOAD
QM120 590 790 220 with glass 542 725 DOWNLOAD
QM144 590 940 220 with glass 542 875 DOWNLOAD
QM168 590 1090 220 with glass 542 1025 DOWNLOAD





EQUIPMENT FOR MODULAR SWITCHES

QM048
N. 48 MODULES (2 PQM150F)

QM072
N. 72 MODULES (3 PQM150F)

QM096
N. 72 MODULES (3 PQM200F)
N. 96 MODULI (4 PQM150F)

QM120
N. 96 MODULES (1 PQM150F + 3 PQM200F)
N. 120 MODULES (5 PQM150F)

QM144
N. 120 MODULES (2 PQM150F + 3 PQM200F)
N. 144 MODULES (6 PQM150F)

QM168
N. 144 MODULES (3 PQM150F + 3 PQM200F)
N. 168 MODULES (7 PQM150F)
