Lecterns QP

Pulpiti

Pulpiti

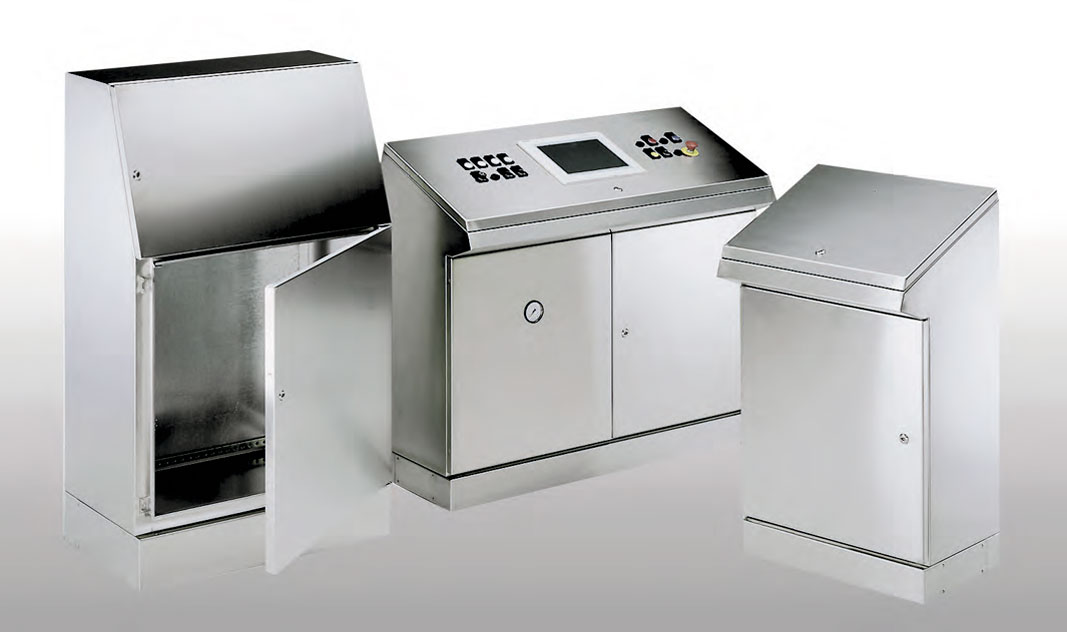

LECTERNS
•    Material: EN 1.4301 (TYPE 304L) s/s satin-finished scotch brite and protected on one side, thickness: doors 20/10 envelope 15/10.
•    Enclosure obtained from a single sheet.
•    Fairlead plates with seal.
•    Full doors, top opening with supporting rods (for L.1200 and L.1600 n.2 supporting rods).
•    Box-type door locks with 3-point transmission rods.
•    Inner hinges, s/s executiuon, 120° opening as per CEI EN 60204-1 recommendations.
•    Maximum weight permitted on the door: 12 kg.
•    Foamed polyurethane seal.
•    Inner plate made of EN10142 sendzimir galvanized sheet, secured to the bottom of the enclosure by s/s stud bolts and supported by suitable ABS rests that relieve the stud bolts of the weight of the plate and of the equipment fitted.
•    Prearranged for earthing according to the regulations in force.
•    Protection degree IP66 for single door lecterns, IP65 for 2-door lecterns.



LECTERNS PLINTHS
H.100
PLINTHS
H.200
SKETCH
ART/ITEM L H P ART/ITEM ART/ITEM
QP0600 608 950 400 ZX06104 ZX06204 DOWNLOAD
QP0800 808 950 400 ZX08104 ZX08204 DOWNLOAD
QP1000 1008 950 400 ZX10104 ZX10204 DOWNLOAD
QP1200 1211 950 400 ZX12104 ZX12204 DOWNLOAD
QP1600 1611 950 400 ZX16104 ZX16204 DOWNLOAD
QP0812 800 1200 500 ZX08105 ZX08205 DOWNLOAD





Catalogue of Computer Cabinets and Lecterns
