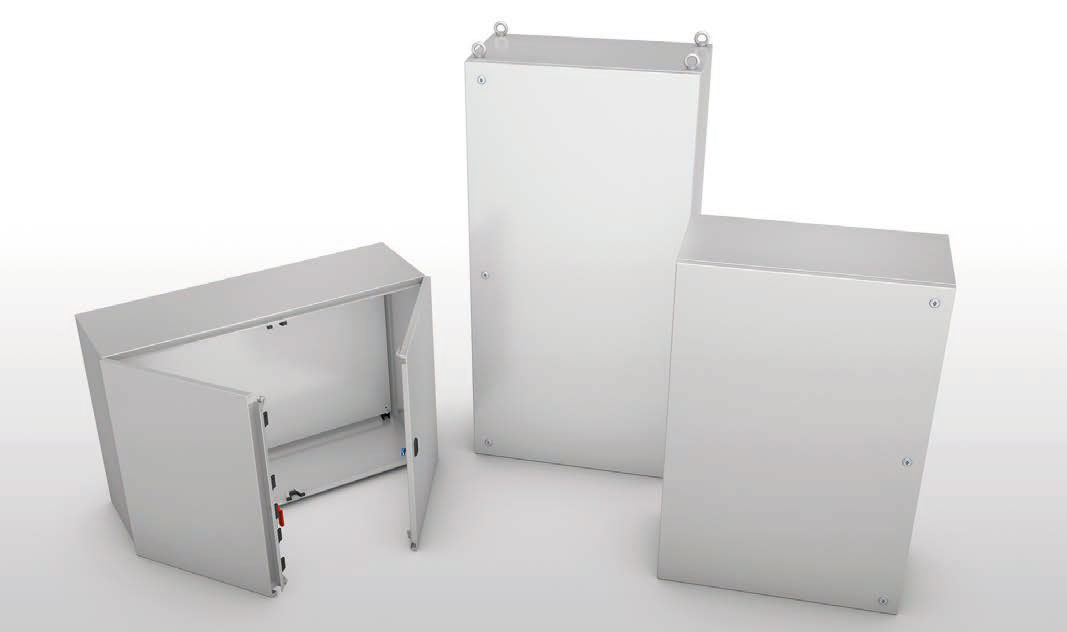

ENCLOSURES QLP
• Material: EN 1.4301 (TYPE 304L) s/s, satin-finished scotch brite and protected on one side.
• Enclosure obtained from a single sheet, shaped by multi-bending of the envelope front edge.
• Fairlead plate with seal (only for cabinets h1200 – h1600).
• Reversible full door
• Doorlock: twin-comb type standardized type, Ø 3 for Low Tension, s/s outside.
• S/s inner hinges: 120° opening as per CEI EN 60204-1 recommendations.
* Maximum weight admitted on the door: 12 kg
• Seals of foamed polyurethane
• Inner plate made of sendzimir EN 10142 galvanized sheet secured to the bottom of the enclosure by M8 threaded pins delivered wit the plate (except for cabinets QLP616-QLP816-QLP168 where the inner plate is set on rails hence adjustable on the depth)
• Pre-arrangement for earthing as per applicable rules
• Protection degree IP66 for one-door cabinets, IP 65 for two-door cabinets
• Back: prearranged with four inserts H6 for wall mount system (except for items QLP H or W 1600)
| ENCLOSURE | KIND OF DOOR | MOUNTING PLATES | SKETCH | ||||
| ART/ITEM | L | H | P | X | Y | ||
| QLP46 | 450 | 600 | 400 | blind | 420 | 540 | DOWNLOAD |
| QLP66 | 600 | 600 | 400 | blind | 570 | 540 | DOWNLOAD |
| QLP68 | 600 | 800 | 400 | blind | 570 | 740 | DOWNLOAD |
| QLP612 | 600 | 1200 | 400 | blind | 570 | 1140 | DOWNLOAD |
| QLP616 | 605 | 1600 | 400 | blind | 522 | 1522 | DOWNLOAD |
| QLP812 | 800 | 1200 | 400 | blind | 770 | 1140 | DOWNLOAD |
| QLP814 | 800 | 1400 | 400 | blind | 770 | 1340 | DOWNLOAD |
| QLP816 | 805 | 1600 | 400 | blind | 722 | 1522 | DOWNLOAD |
| QLP128 | 1203 | 800 | 400 | blind | 1170 | 740 | DOWNLOAD |
| QLP168 | 1603 | 800 | 400 | blind | 1522 | 722 | DOWNLOAD |
ITEMS QLP612 – 616 – 812 – 816 with fairlead plate
REMARK: All Enclosures with single door can be certified c UL us NEMA 4-4X on demand. Item QLP128/168 can be certified c UL us NEMA 12 on demand.
