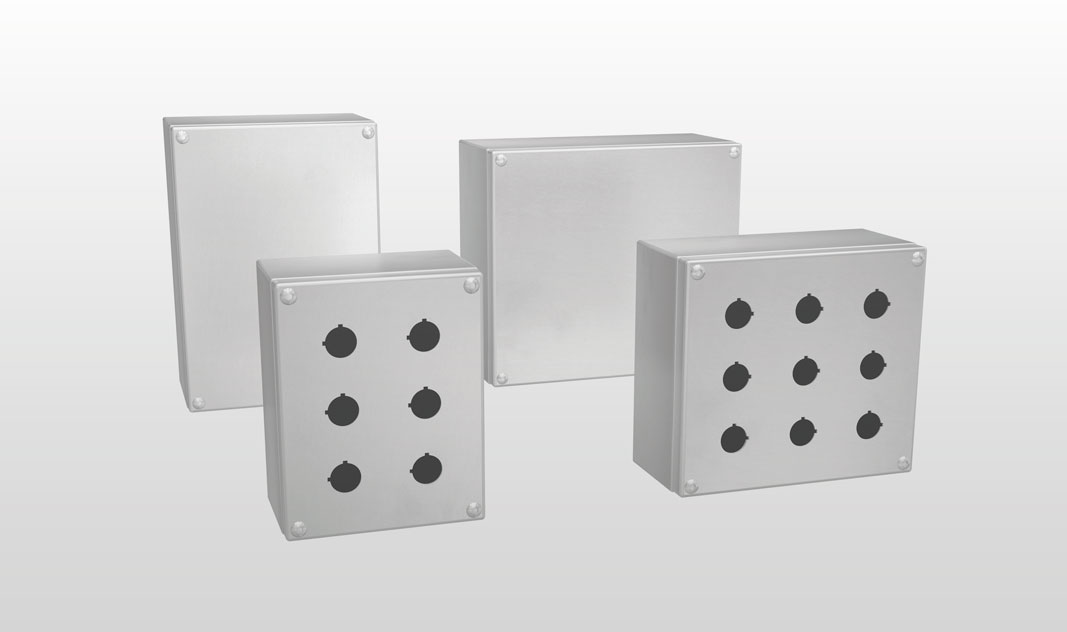

“PS” PUSH-BUTTON PANELS AND “DS” JUNCTION BOXES
• EN 1.4301 (TYPE 304L) s/s execution, thickness 12/10, fine satin-finish. Available on demand in other types of s/s, as well as customized.
• Cutting-edge welding procedures enable to maintain unaltered the chemical formulation of the material thus avoiding corrosion in the weld areas.
• The cover is secured by special “leak-proof” M5 screws.
• Gasket made of closed-cell foamed neoprene rubber, oil-proof and self-extinguishing.
• Protection degree IP66, when appropriate components are properly installed, as per CEI EN 60529 rules.
• Pre-arrangement for earthing in compliance with the applicable rules. For the push-button panel, a special collar of tinned brass is supplied for positioning under a block, in direct contact with the sheet.
• On the bottom are applied  S/S M6 stud bolts to secure structural steel and bars.
• The PS series has a drilled cover to accommodate the Ø 22,5 standardized push-button panel.
• Inner plate in sendzimir  execution (on request).
• The enclosures of the series PS-DS can be pressurized according to CEI 64-2 and CEI 31-1 for A-SI security systems and enclosures featuring Ex-p inside overpressure.



“PS” PUSH-BUTTON PANELS AND “DS” JUNCTION BOXES MATERIAL N° HOLES MOUNTING PLATES SKETCH
ART/ITEM L H P TYPE SPESS.COP SPESS.FASC ART/ITEM X Y
PS6H/304L 190 150 100 TYPE 304L 15/10 12/10 6 PI006 172 110 DOWNLOAD
PS9H/304L 210 190 100 TYPE 304L 15/10 12/10 9 PI009 192 150 DOWNLOAD
PS12H/304L 270 190 100 TYPE 304L 15/10 12/10 12 PI012 252 150 DOWNLOAD
PS16H/304L 270 240 100 TYPE 304L 15/10 12/10 16 PI016 252 200 DOWNLOAD
PS06H/316 190 150 100 TYPE 316L 15/10 15/10 6 PI006 172 110 DOWNLOAD
PS09H/316 210 210 100 TYPE 316L 15/10 15/10 9 PI009 192 170 DOWNLOAD
PS12H/316 270 190 100 TYPE 316L 15/10 15/10 12 PI012 252 150 DOWNLOAD
PS16H/316 270 240 100 TYPE 316L 15/10 15/10 16 PI016 252 200 DOWNLOAD
DS006/304L 190 150 125 TYPE 304L 15/10 12/10 blind PI006 172 110 DOWNLOAD
DS009/304L 210 190 125 TYPE 304L 15/10 12/10 blind PI009 192 150 DOWNLOAD
DS012/304L 270 190 125 TYPE 304L 15/10 12/10 blind PI012 252 150 DOWNLOAD
DS016/304L 270 240 125 TYPE 304L 15/10 12/10 blind PI016 252 200 DOWNLOAD
DS020/304L 320 230 150 TYPE 304L 15/10 12/10 blind PI020 280 190 DOWNLOAD
DS025/304L 320 280 150 TYPE 304L 15/10 12/10 blind PI025 280 240 DOWNLOAD
DS043/304L 400 300 150 TYPE 304L 15/10 12/10 blind PI043 360 260 DOWNLOAD
DS006/316 190 150 125 TYPE 316L 15/10 15/10 blind PI006 172 110 DOWNLOAD
DS010/316 210 210 125 TYPE 316L 15/10 15/10 blind PI009 192 170 DOWNLOAD
DS012/316 270 190 125 TYPE 316L 15/10 15/10 blind PI012 252 150 DOWNLOAD
DS016/316 270 240 125 TYPE 316L 15/10 15/10 blind PI016 252 200 DOWNLOAD
DS020/316 320 230 150 TYPE 316L 15/10 15/10 blind PI020 280 190 DOWNLOAD
DS025/316 320 280 150 TYPE 316L 15/10 15/10 blind PI025 280 240 DOWNLOAD
DS040/316 400 200 150 TYPE 316L 15/10 15/10 blind PI040 360 160 DOWNLOAD
DS060/316 600 200 150 TYPE 316L 15/10 15/10 blind PI060 565 152 DOWNLOAD

REMARK: All junction boxes TYPE 316 s/s can be certified c UL us NEMA 4-4X on demand
