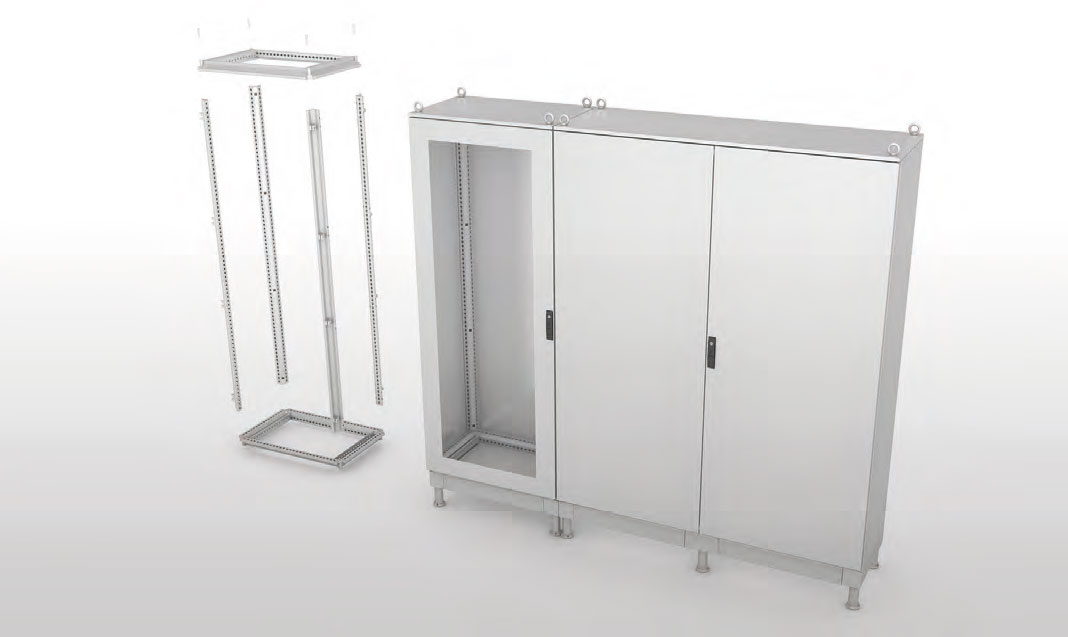

Modular Cabinets MX

• Material: EN 1.4301 (TYPE 304L), finely satin-finished and protected, thickness 15/10 for the side and back panels, 20/10 for frame and door
• Frame: jointing system realized with precision casting and s/s section bars with drills spaced 25mm for fitting any accessory
* Supplied in assembling kit or pre-assembled, on demand
• Front door, full or glazed version (shatterproof  3+3 laminate glass), with s/s stiffening inner frame, drilled to support equipment and/or fasten raceways and accessories. On request the full door can also be equipped with partial windows, or realized with other materials (polycarbonate or aluminium for silk printing)
• Rear side: the cabinet can have a full rear panel, bolted, with sealing spacers, or a hinged door like the front one
• Side panels, removable and bolted, to be ordered separately (see “Accessories for cabinets”)
• Twin-comb door lock with outside faceplate of glass-filled black polyamides, 4-point closing and low tension. Other types of door locks available on request
•    The cabinet bottom can accommodate three different types of fairlead plates: enbloc, multiple or sash-type multiple, to be ordered separately (see accessories for cabinets)
• TYPE 316 s/s inner hinges, for 120° opening as per CEI EN 60204-1 recommendations
• Maximum weight admitted on the door: 30 kg
• Seal of foamed polyurethane, applied by robotized system
• Inner plate, sendzimir execution, to be ordered separately, available both in the traditional and the space saving version (larger). Intermediate plates, sendzimir execution, are available on request
• Pre-arranged for earthing in compliance with the applicable regulations in force
• Protection degree: IP66 (IP65 for modules L.1200)
NOTE: Cabinet delivered in assembling kit, pre-assembled version available on request
* All the compositions of cabinets MX are equipped with RFID



Single blind door module

To request your cabinet in an assembling kit, just add a K after the code (e.g. MX0685K)

MODULAR CABINETS MOUNTING PLATES SIDE PANELS PLINTHS
H.100
PLINTHS
H.200
SKETCH
ART. L H P ART. X Y ART. ART. ART.
MX0685 606 1827 518 PA0517 497 1692 MX85 ZX06105 ZX06205
MX0686 606 1827 618 PA0517 497 1692 MX86 ZX06106 ZX06206
MX0688 606 1827 818 PA0517 497 1692 MX88 ZX06108 ZX06208
MX0885 806 1827 518 PA0717 697 1692 MX85 ZX08105 ZX08205
MX0886 806 1827 618 PA0717 697 1692 MX86 ZX08106 ZX08206
MX0888 806 1827 818 PA0717 697 1692 MX88 ZX08108 ZX08208
MX1085 1006 1827 518 PA0917 897 1692 MX85 ZX10105 ZX10205
MX1086 1006 1827 618 PA0917 897 1692 MX86 ZX10106 ZX10206
MX1088 1006 1827 818 PA0917 897 1692 MX88 ZX10108 ZX10208
MX0605 606 2027 518 PA0519 497 1892 MX05 ZX06105 ZX06205
MX0606 606 2027 618 PA0519 497 1892 MX06 ZX06106 ZX06206
MX0608 606 2027 818 PA0519 497 1892 MX08 ZX06108 ZX06208
MX0805 806 2027 518 PA0719 697 1892 MX05 ZX08105 ZX08205
MX0806 806 2027 618 PA0719 697 1892 MX06 ZX08106 ZX08206
MX0808 806 2027 818 PA0719 697 1892 MX08 ZX08108 ZX08208
MX1005 1006 2027 518 PA0919 897 1892 MX05 ZX10105 ZX10205
MX1006 1006 2027 618 PA0919 897 1892 MX06 ZX10106 ZX10206
MX1008 1006 2027 818 PA0919 897 1892 MX08 ZX10108 ZX10208



Double blind door module

To request your cabinet in an assembling kit, just add a K after the code (e.g MX1285K)

MODULAR CABINETS MOUNTING PLATES SIDE PANELS PLINTHS
H.100
PLINTHS
H.200
SKETCH
ART. L H P ART. X Y ART. ART. ART.
MX1285 1209 1827 518 PA1117 1100 1692 MX85 ZX12105 ZX12205
MX1286 1209 1827 618 PA1117 1100 1692 MX86 ZX12106 ZX12206
MX1288 1209 1827 818 PA1117 1100 1692 MX88 ZX12108 ZX12208
MX1685 1614 1827 518 PA1517 1505 1692 MX85 ZX16105 ZX16205
MX1686 1614 1827 618 PA1517 1505 1692 MX86 ZX16106 ZX16206
MX1688 1614 1827 818 PA1517 1505 1692 MX88 ZX16108 ZX16208
MX1205 1209 2027 518 PA1119 1100 1892 MX05 ZX12105 ZX12205
MX1206 1209 2027 618 PA1119 1100 1892 MX06 ZX12106 ZX12206
MX1208 1209 2027 818 PA1119 1100 1892 MX08 ZX12108 ZX12208
MX1605 1614 2027 518 PA1519 1505 1892 MX05 ZX16105 ZX16205
MX1606 1614 2027 618 PA1519 1505 1892 MX06 ZX16106 ZX16206
MX1608 1614 2027 818 PA1519 1505 1892 MX08 ZX16108 ZX16208



Cable riser module

To order your cabinet in assembling kit, just add a K at the end of the relevant code (e.g. RMX0385K)

CABLE RISER x MX MOUNTING PLATES SIDE PANELS PLINTHS
H.100
PLINTHS
H.200
ART. L H P ART. X cebook.c ART. ART. ART.
RMX0385 306 1827 518 PA0217 197 1692 MX85 ZX03105 ZX03205
RMX0386 306 1827 618 PA0217 197 1692 MX86 ZX03106 ZX03206
RMX0388 306 1827 818 PA0217 197 1692 MX88 ZX03108 ZX03208
RMX0485 406 1827 518 PA0317 297 1692 MX85 ZX04105 ZX04205
RMX0486 406 1827 618 PA0317 297 1692 MX86 ZX04106 ZX04206
RMX0488 406 1827 818 PA0317 297 1692 MX88 ZX04108 ZX04208
RMX0305 306 2027 518 PA0219 197 1892 MX05 ZX03105 ZX03205
RMX0306 306 2027 618 PA0219 197 1892 MX06 ZX03106 ZX03206
RMX0308 306 2027 818 PA0219 197 1892 MX08 ZX03108 ZX03208
RMX0405 406 2027 518 PA0319 297 1892 MX05 ZX04105 ZX04205
RMX0406 406 2027 618 PA0319 297 1892 MX06 ZX04106 ZX04206
RMX0408 406 2027 818 PA0319 297 1892 MX08 ZX04108 ZX04208
RMXP0385 306 1827 518 PA0217 197 1692 MX85 ZX03105 ZX03205
RMXP0386 306 1827 618 PA0217 197 1692 MX86 ZX03106 ZX03206
RMXP0388 306 1827 818 PA0217 197 1692 MX88 ZX03108 ZX03208
RMXP0485 406 1827 518 PA0317 297 1692 MX85 ZX04105 ZX04205
RMXP0486 406 1827 618 PA0317 297 1692 MX86 ZX04106 ZX04206
RMXP0488 406 1827 818 PA0317 297 1692 MX88 ZX04108 ZX04208
RMXP0305 306 2027 518 PA0219 197 1892 MX05 ZX03105 ZX03205
RMXP0306 306 2027 618 PA0219 197 1892 MX06 ZX03106 ZX03206
RMXP0308 306 2027 818 PA0219 197 1892 MX08 ZX03108 ZX03208
RMXP0405 406 2027 518 PA0319 297 1892 MX05 ZX04105 ZX04205
RMXP0406 406 2027 618 PA0319 297 1892 MX06 ZX04106 ZX04206
RMXP0408 406 2027 818 PA0319 297 1892 MX08 ZX04108 ZX04208

Note:
“RMX” bolt-on front panel
“RMXP” hinged front door

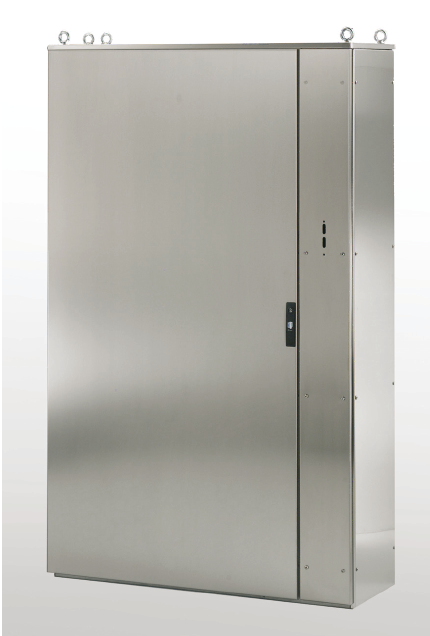

MODULE FOR DISCONNECTOR BLOCK

Modulo per blocco sezionatore

Modulo per blocco sezionatore



Designed in compliance with the USA safety-related regulations, it allows maximum utilization of the inner spaces, particularly of the whole inner plate, while maintaining accessibility on all sides, which is peculiar to MX modular cabinets.
The module, without inner segregations, features a front door (acting as main door in a battery of cabinets) and a 200mm bolted panel, prearranged to accommodate the control lever of the following master switches:
•    Allen Bradley 1494 V-H1
•    Square D 9422 A1
•    General Electric TDA tipo 1 e 2
•    Moeller NZM-XSHGVR 12-NA
•    Siemens ITE MAX FLEX ®

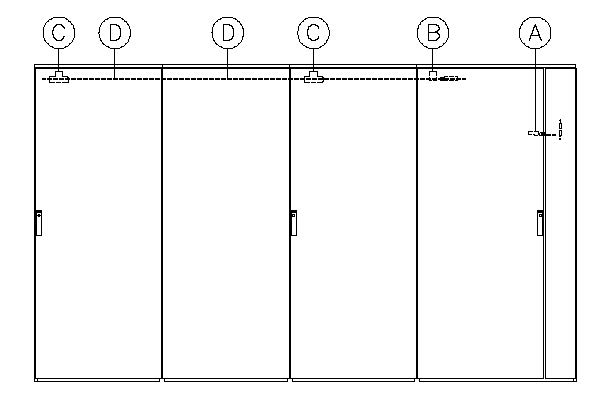

Complete with disconnector interlock – item (A) in the diagram below.
This module being usually combined with other modules in a battery, its use must envisage also the use of an interlocks kit, a mechanical system that permits to set the priorities for doors opening:

Interblocchi MX

Interblocchi MX

Disconnector intelock (A)
To lock the door (B in the figure) near to the bolted panel bearing the switch (the door will open only when the latter is set to OFF) inside the module for disconnector block.

MKP.PR primary interlock (B)
Mechanical drive, including the related transmission lever, to be fitted to the door of the module accommodating the disconnector  block (primary) to command the opening of the doors in the battery-mounted cabinets (secondary).

 MKP.SE secondary interlock (C)
To be fitted on all the secondary doors whose opening is slaved to the opening of the primary door; for the double door cabinets, it is to be fitted to the door having priority opening direction (outside door lock)
The door opening direction is not binding.

Transmission rods (D)
To transmit the lock or unlock command from the primary door to the secondary ones.

A rod must be ordered per each module except the module for the disconnector block:
•    MKP.AR06 – transmission rod for cabinets nominal width 600 mm.
•    MKP.AR08 – transmission rod for cabinets nominal width 800 mm.
•    MKP.AR10 – transmission rod for cabinets nominal width 1000 mm.
•    MKP.AR12 – transmission rod for cabinets nominal width 1200 mm.
•    MKP.AR16 – transmission rod for cabinets nominal width 1600 mm.



Accessories For Cabinets MX

Accessories For Cabinets MX



A wide range of accessories makes your cabinets fully customizable
See for the wide range of solutions and proposals in the specific section.
