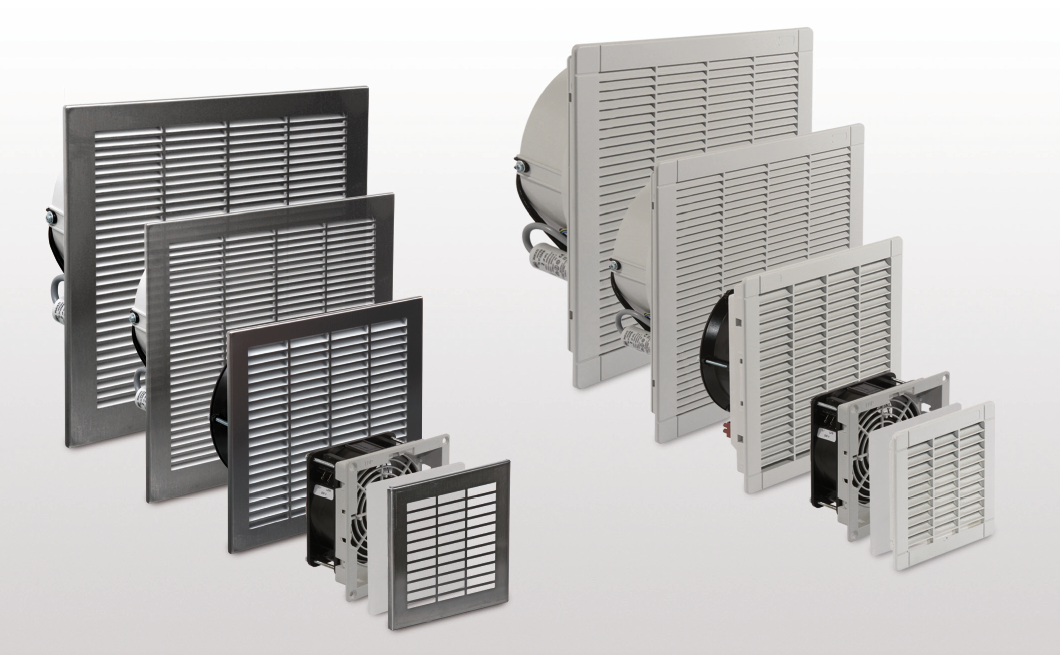

VENTILATION UNITS SERIES KV KG
STANDARD FEATURES AND OUTFITTING
• Protection degree IP54
• Grid inner body made of ABS plastic, self-extinguishing according to UL94V-O, resistant to temperatures ranging from 10°C to +70°C, colour RAL7032
• Outside grids with shutters type slot for condensate drainage; available both in EN 1.4301 (TYPE 304L) s/s finely satin-finished and protected, and ABS plastic self-extinguishing according to UL94V-O, resistant to temperatures from 10°C to +70°C, colour RAL 7032.
• Filters: fit for retaining powders of granulometry up to 10 micron.
• Axial fans with conveyor, grids and filter, working in intake and extraction mode (see table).
• Motor set on ball bearings, non-stop running for 30.000 h. h.
• Compliant with CEI 17-13/1 (IEC439-1), CEI 61-28 (IEC342-1)
