Armadi Serie CX-A

Armadi Serie CX-A

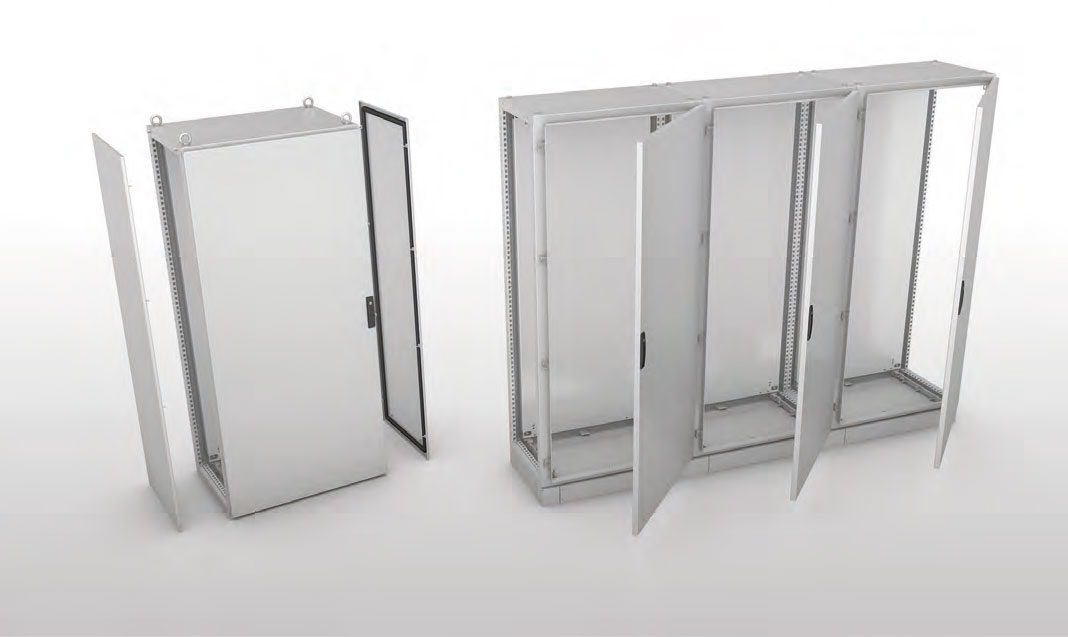

MONOBLOC CABINETS WITH REMOVABLE SIDE PANELS – SERIES CX-A
• Material: EN 1.4301 (TYPE 304L) s/s, finely satin-finished and protected, thickness: door 20/10, envelope and sides 15/10
• Front door, full or with 3+3 laminate shatterproof glass, stiffening s/s inner frame, drilled to support equipment and/or secure cableways and accessories.
* The full door can also be equipped with partial windows and different materials can be used (polycarbonate or aluminium for silk printing) on demand.
• Rear side not accessible and ceiling not removable, obtained from a single sheet.
• Side panels, bolted and removable, to be ordered separately
• Two-comb door lock with outside faceplate of glass-filled black polyamides, 4-point closing and L.T. key. On request it can be replaced by other types of door locks (see “accessories for cabinets”).
* The cabinet bottom can be equipped with three different types of fairlead plates: enbloc, multiple or slash type multiple, to be ordered separately (see accessories for cabinets)
• TYPE 316L s/s inner hinges, for 120° opening as per CEI EN 60204-1 recommendations
• Maximum weight permitted on the door: 30 kg
• Seal of foamed polyurethane, applied by robotized system
• Sendzimir inner plate to be ordered separately (see “Accessories for cabinets”)
• Pre-arranged for earthing as per regulations in force
• Protection degree: IP66 (IP65 for modules L.1200)
* All the compositions of CX-A cabinets are equipped wit h RFID
Self Standing Cabinets CX-A

REMOVABLE SIDE PANELS MOUNTING PLATES SIDE PANELS PLINTHS
H.100
PLINTHS
H.200
ART/ITEM L H P ART/ITEM X Y ART/ITEM ART/ITEM ART/ITEM
SINGLE DOOR CX0684A 608 1800 400 PA0517 497 1692 CX84A ZX06104 ZX06204
CX0685A 608 1800 500 PA0517 497 1692 CX85A ZX06105 ZX06205
CX0686A 608 1800 600 PA0517 497 1692 CX86A ZX06106 ZX06206
CX0884A 808 1800 400 PA0717 697 1692 CX84A ZX08104 ZX08204
CX0885A 808 1800 500 PA0717 697 1692 CX85A ZX08105 ZX08205
CX0886A 808 1800 600 PA0717 697 1692 CX86A ZX08106 ZX08206
CX1084A 1008 1800 400 PA0917 897 1692 CX84A ZX10104 ZX10204
CX1085A 1008 1800 500 PA0917 897 1692 CX85A ZX10105 ZX10205
CX1086A 1008 1800 600 PA0917 897 1692 CX86A ZX10106 ZX10206
CX0604A 608 2000 400 PA0519 497 1892 CX04A ZX06104 ZX06204
CX0605A 608 2000 500 PA0519 497 1892 CX05A ZX06105 ZX06205
CX0606A 608 2000 600 PA0519 497 1892 CX06A ZX06106 ZX06206
CX0804A 808 2000 400 PA0719 697 1892 CX04A ZX08104 ZX08204
CX0805A 808 2000 500 PA0719 697 1892 CX05A ZX08105 ZX08205
CX0806A 808 2000 600 PA0719 697 1892 CX06A ZX08106 ZX08206
CX1004A 1008 2000 400 PA0919 897 1892 CX04A ZX10104 ZX10204
CX1005A 1008 2000 500 PA0919 897 1892 CX05A ZX10105 ZX10205
CX1006A 1008 2000 600 PA0919 897 1892 CX06A ZX10106 ZX10206
TWO DOORS CX1284A 1211 1800 400 PA1117 1100 1692 CX84A ZX12104 ZX12204
CX1285A 1211 1800 500 PA1117 1100 1692 CX85A ZX12105 ZX12205
CX1286A 1211 1800 600 PA1117 1100 1692 CX86A ZX12106 ZX12206
CX1204A 1211 2000 400 PA1119 1100 1892 CX04A ZX12104 ZX12204
CX1205A 1211 2000 500 PA1119 1100 1892 CX05A ZX12105 ZX12205
CX1206A 1211 2000 600 PA1119 1100 1892 CX06A ZX12106 ZX12206


REMARK: All cabinets with single door can be certified c UL us NEMA 4-4X on demand. Cabinets W.1200 with two doors can be certified c UL us NEMA 12 on demand.





Self Standing Cabinets RX-A



CABLE RISERS x CX-A MOUNTING PLATES SIDE PANELS PLINTHS
H.100
PLINTHS
H.200
ART/ITEM L H P ART/ITEM X Y ART/ITEM ART/ITEM ART/ITEM
BOLTED FRONT PANEL RX0384A 308 1800 400 PA0217 197 1692 CX84A ZX03104 ZX03204
RX0385A 308 1800 500 PA0217 197 1692 CX85A ZX03105 ZX03205
RX0386A 308 1800 600 PA0217 197 1692 CX86A ZX03106 ZX03206
RX0304A 308 2000 400 PA0219 197 1892 CX04A ZX03104 ZX03204
RX0305A 308 2000 500 PA0219 197 1892 CX05A ZX03105 ZX03205
RX0306A 308 2000 600 PA0219 197 1892 CX06A ZX03106 ZX03206
RX0484A 408 1800 400 PA0317 297 1692 CX84A ZX04104 ZX04204
RX0485A 408 1800 500 PA0317 297 1692 CX85A ZX04105 ZX04205
RX0486A 408 1800 600 PA0317 297 1692 CX86A ZX04106 ZX04206
RX0404A 408 2000 400 PA0319 297 1892 CX04A ZX04104 ZX04204
RX0405A 408 2000 500 PA0319 297 1892 CX05A ZX04105 ZX04205
RX0406A 408 2000 600 PA0319 297 1892 CX06A ZX04106 ZX04206
HINGED FRONT PANEL RXP0384A 308 1800 400 PA0217 197 1692 CX84A ZX03104 ZX03204
RXP0385A 308 1800 500 PA0217 197 1692 CX85A ZX03105 ZX03205
RXP0386A 308 1800 600 PA0217 197 1692 CX86A ZX03106 ZX03206
RXP0304A 308 2000 400 PA0219 197 1892 CX04A ZX03104 ZX03204
RXP0305A 308 2000 500 PA0219 197 1892 CX05A ZX03105 ZX03205
RXP0306A 308 2000 600 PA0219 197 1892 CX06A ZX03106 ZX03206
RXP0484A 408 1800 400 PA0317 297 1692 CX84A ZX04104 ZX04204
RXP0485A 408 1800 500 PA0317 297 1692 CX85A ZX04105 ZX04205
RXP0486A 408 1800 600 PA0317 297 1692 CX86A ZX04106 ZX04206
RXP0404A 408 2000 400 PA0319 297 1892 CX04A ZX04104 ZX04204
RXP0405A 408 2000 500 PA0319 297 1892 CX05A ZX04105 ZX04205
RXP0406A 408 2000 600 PA0319 297 1892 CX06A ZX04106 ZX04206

REMARK: All cabinets with single door can be certified c UL us NEMA 4-4X on demand.

Accessories for cabinets CX

Accessories for cabinets CX



A wide range of accessories makes your cabinets fully customizable..
See for the wide range of solutions and proposals in the specific section.
