Armadi Compatti CC

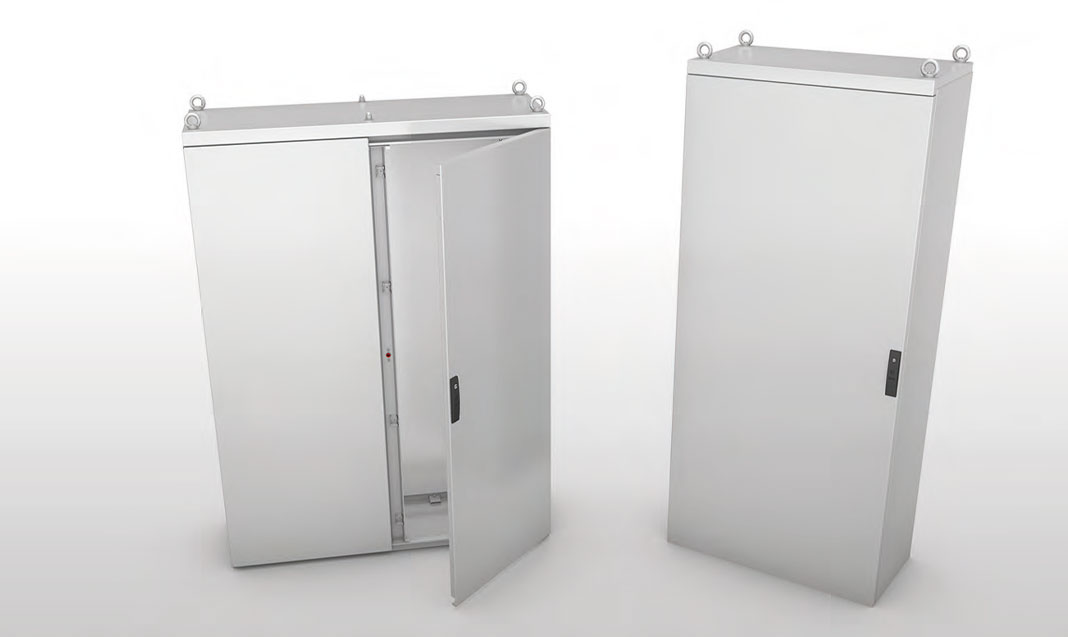

Compact Cabinets Series CC



COMPACT CABINETS SERIES CC
• Material: EN 1.4301 (TYPE 304L) s/s, finely satin-finished and protected, thickness 15/10 for the cabinet, 20/10 for the door
• Envelope obtained from a single sheet, no rear access; top panel removable for easy cable entry from above and/or for the installation of conditioning systems. Shaping by multi-bending of the envelope front edge.
• Front door: full or glazed (shatterproof 3+3 laminate glass) with stiffening frame.
* On request, the full door can also be equipped with partial windows and other materials can be used (polycarbonate or aluminium for silk printing)
• Three different types of fairleads are available for the cabinet bottom: enbloc, multiple or sash type multiple, to be ordered separately (see accessories for cabinets)
• Twin-comb lock with outside faceplate made of glass-filled black polyamide, 4-point closing and Low Tension key. On request it can be replaced by different locks (see accessories for cabinets)
• TYPE 316L s/s inner hinges for 120° opening as per CEI EN 60204-1 recommendations
• Maximum load admitted on the door: 30 KG
• Hoisting eyebolt M12
• Seal of foamed polyurethane
• Sendzimir inner plate , to be ordered separately (see “accessories for cabinets”)
• Pre-arranged for earthing in compliance with the applicable regulations in force
• Protection degree: IP66 in compliance with CEI EN 60529 ( IP65 for 2-door cabinets)
•    The cabinets can be made from other types of s/s and with different sizes and patterns to suit specific requirements
•    All the CC cabinets are equipped with RFID





COMPACT CABINETS MOUNTING PLATES PLINTHS
H.100
PLINTHS
H.200
ART/ITEM L H P ART/ITEM X Y ART/ITEM ART/ITEM
CC818 805 1840 400 PA0717 697 1692 ZX08104 ZX08204
CC1018 1005 1840 400 PA0917 897 1692 ZX10104 ZX10204
CC1216 1208 1640 400 PA1115 1100 1492 ZX12104 ZX12204
CC1218 1208 1840 400 PA1117 1100 1692 ZX12104 ZX12204
CC1616 1608 1640 400 PA1515 1505 1492 ZX16104 ZX16204
CC1618 1608 1840 400 PA1517 1505 1692 ZX16104 ZX16204





Accessori Per Armadi Compatti

Accessories for Compact Cabinets



A wide range of accessories makes your cabinets fully customizable..
See for the wide range of solutions and proposals in the specific section.
