Small Cabinets QLSE

Armadietti QSE

Small Cabinets QLSE

Small Cabinets QLSE

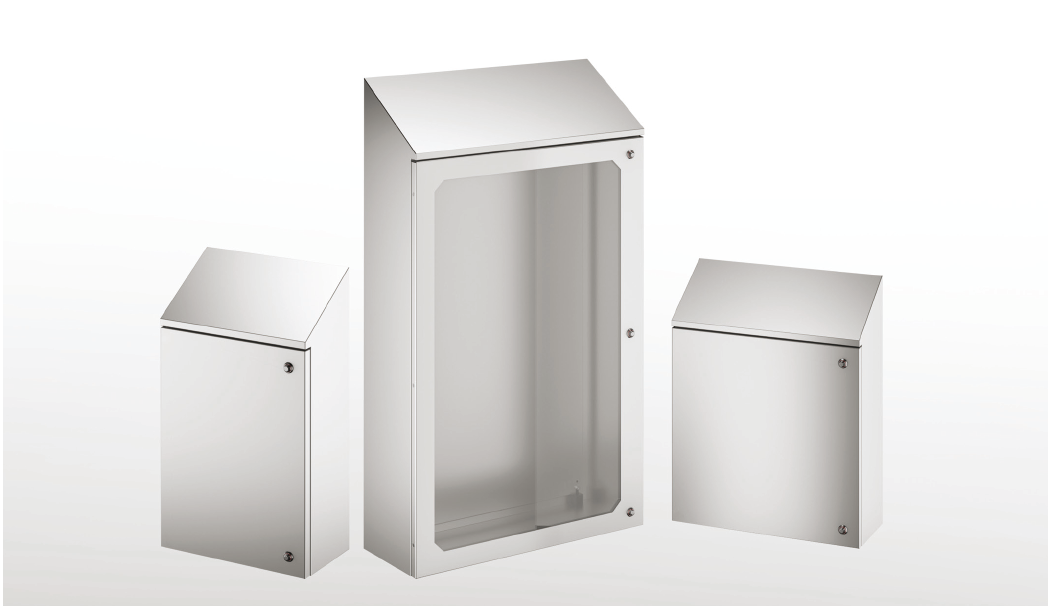

The cabinet of the QLSE Line are designed for utilization in food, dairy, pharmaceutical industries in areas where extremely stringent hygienic-sanitary regulation must be complied with, while a built-in sloping roof is however necessary to protect the gap between door and enclosure as well, to prevent matters and filth from depositing.
•    Material: s/s EN 1.4301 (TYPE 304L) or, on request, EN 1.4404 (TYPE 316L) satin-finish scotch brite, protected.
•    Enclosure obtained from a single sheet, shaped by multiple bending of the front edge;  30° slope roof to prevent objects being put on it and to facilitate cleaning and liquid drainage.
•    Full door (max. weight admitted 12 kg); glazed door available on request.
•    Doorlock, twin comb standardized type, Ø 3 for L.T. key; s/s outside surfaces; sanitary doorlocks on request.
•    S/s inner hinges: 120° opening according to CEI EN 60204-1 recommendation.
•    Seal made of polyurethanic bicomponent, computerized laying.
•    Inner plate, EN 10142 sendzimir galvanized sheet execution, secured to the bottom of the enclosure by threaded pins M8 welded inside the enclosure.
•    Prearranged for earthing as per regulations in force.
•    The back of the enclosure has 4 blind holes for easy application of the wall mount system, either traditional or sanitary
•    Glazed door with glass and fairlead plate available on request.
•    Protection degree: IP66 as per EN 60 529



OUTSIDE DIMENSIONS THICKNESS MOUNTING PLATE
ART. L H P material container door X Y
QLSE33/304 300 427 180 TYPE304L 12/10 15/10 240 350
QLSE34/304 300 588 200 TYPE304L 12/10 15/10 240 500
QLSE36/304 300 767 250 TYPE304L 12/10 15/10 240 650
QLSE43/304 450 438 200 TYPE304L 12/10 15/10 390 350
QLSE44/304 450 588 200 TYPE304L 12/10 15/10 390 500
QLSE46/304 450 767 250 TYPE304L 12/10 15/10 390 650
QLSE64/304 600 618 250 TYPE304L 12/10 15/10 540 500
QLSE66/304 600 767 250 TYPE304L 12/10 15/10 540 650
QLSE66P/304 600 796 300 TYPE304L 12/10 15/10 540 650
QLSE67/304 600 917 250 TYPE304L 15/10 20/10 540 800
QLSE69/304 600 1067 250 TYPE304L 15/10 20/10 540 950
QLSE77/304 750 946 300 TYPE304L 15/10 20/10 690 800
QLSE710/304 750 1196 300 TYPE304L 15/10 20/10 690 1050
QLSE86/304 800 796 300 TYPE304L 15/10 20/10 740 650
QLSE812/304 800 1408 320 TYPE304L 15/10 20/10 740 1250
QLSE33/316 300 427 180 TYPE316L 15/10 15/10 240 350
QLSE34/316 300 588 200 TYPE316L 15/10 15/10 240 500
QLSE36/316 300 767 250 TYPE316L 15/10 15/10 240 650
QLSE43/316 450 438 200 TYPE316L 15/10 15/10 390 350
QLSE44/316 450 588 200 TYPE316L 15/10 15/10 390 500
QLSE46/316 450 767 250 TYPE316L 15/10 15/10 390 650
QLSE64/316 600 618 250 TYPE316L 15/10 15/10 540 500
QLSE66/316 600 767 250 TYPE316L 15/10 15/10 540 650
QLSE67/316 600 917 250 TYPE316L 15/10 20/10 540 800
QLSE69/316 600 1067 250 TYPE316L 15/10 20/10 540 950
QLSE77/316 750 946 300 TYPE316L 15/10 20/10 690 800
QLSE710/316 750 1196 300 TYPE316L 15/10 20/10 690 1050
