SRS SPACE SAVING CABLING SYSTEM

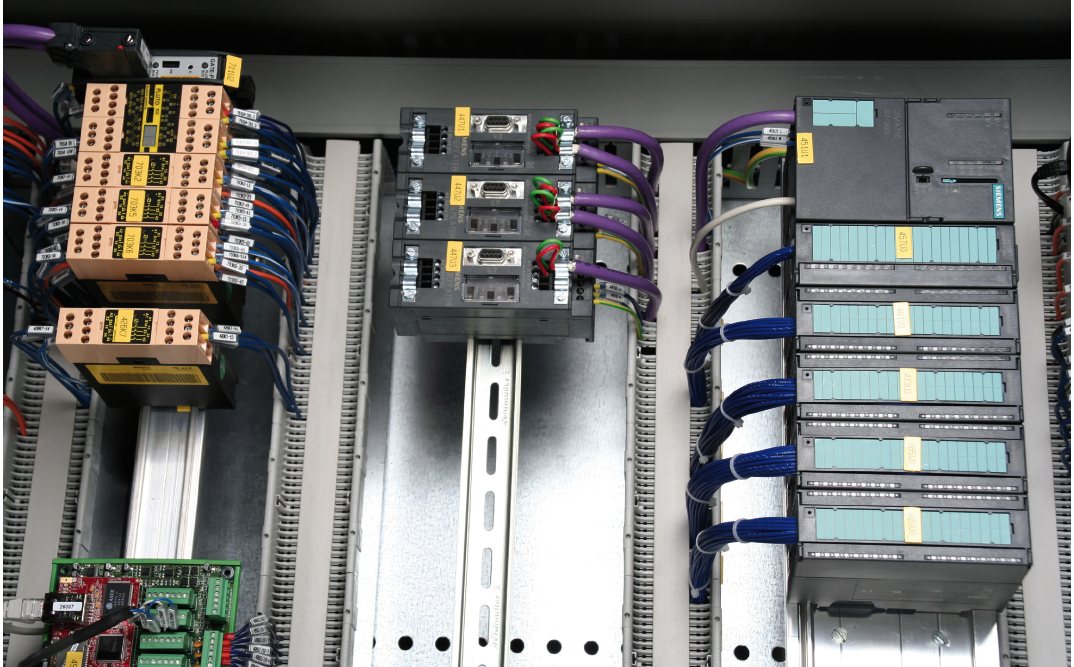

Always attentive to our customers requirements, Ilinox has tuned a wiring system which, exploiting the idea of working on two levels, permits to recover space inside a cabinet, while maintaining the flexibility of the traditional system, thus cutting costs.
The system consists of few standardized elements that permit to cope with the most varied requirements. Using an inner plate as a base permits to shift from traditional wiring to the SRS system very simply and without having to keep to preset schemes, thus exploiting the whole space available inside the cabinet, as the need be.

SPACE RECOVERY
Reducing the space between equipment permits to recover up to 30% on traditional wiring; actually, the cableways provided with comb-type cover for cable inlet from above, are set below the level of the components. This permits to recover approx. 3 cm on each row of components while taking advantage of the whole width of the plate.

FLEXIBILITY
The inner plate permits to use the system only when true advantages are possible (equipment prearranged for assembling on DIN bars)  Inverter of medium-big dimensions, switches and/or special equipment, can on the contrary be set directly on the inner plate. It is also possible to shift from a horizontal layout to a vertical or mixed one without constraints.
Similarly to the traditional wiring, modifications are possible during manufacture and/or after the cabinet is field installed.

COST-EFFECTIVENESS
Space recovery permits to make use of cabinets featuring smaller sizes or a lower number of columns (if assembled in battery). Simple and user-friendly, the low number of components to be controlled enable considerable saving in terms of costs and assembling time.



Staffe

Din Section Bars

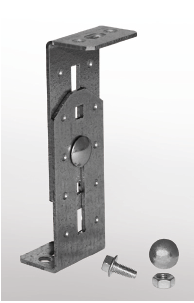

DIN SECTION BARS
The upport brackets for DIN bars are made from galvanized sheet sendzimir EN10142 and are height adjustable from 100 to 160 mm.
• SRS-K100 Delivered in kit of 10 brackets, complete with screws









Canalina

Raceways

RACEWAYS WITH COMB-TYPE CABLE INLET
Raceway complete with combs for cables entrance from above and with cover to “streamline” the wiring.
Grey PVC RAL 7038 execution, they come in bars 1,5m long
They can be coupled with the standard raceways commonly available from the trade, usable for cable raisers.
The use of raceways with 100mm minimum height is recommended.







Barre

Bars

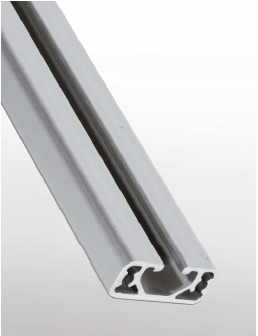

DIN SECTION BARS
Shaped bars DIN EN50022 35×7,5, aluminium execution; besides adding great stiffness, their section permits assembling without the need for any drilling, by means of the anti-rotation, round head square neck screws, delivered with the support brackets.
They come in 3m or 1,5m bars to be cut to the need.
• SRS-DIN1500
• SRS-DIN3000







Barra Univarsale

Multipurpose Bar

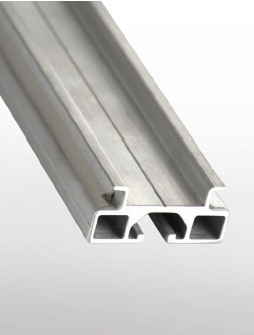

MULTIPURPOSE BAR
Multipurpose aluminium bar, 30×12 section, smooth top side, for the assembling of equipment not requiring DIN sections; its section allows easy assembling to the inner plate by means of round head square neck screws delivered with the support brackets.
They come in 3m or 1,5m bars to be cut to the need.
• SRS-PU1500 – multipurpose bar 1,5m long
• SRS-PU3000 – multipurpose bar 3 m long





Viti

Screws

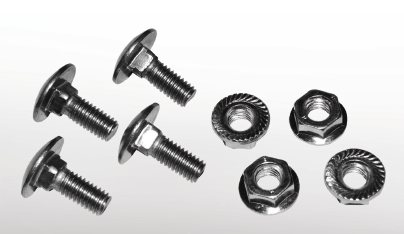

ROUND HEAD SQUARE NECK SCREWS
Roundhead square neck screws, galvanized steel M6x16 for the slot of the SRS-DIN bars. Delivered complete with self-locking indented flanged nuts, they come in 50 pcs. packs.
• VQSM6







Viti Trilobate

Screws

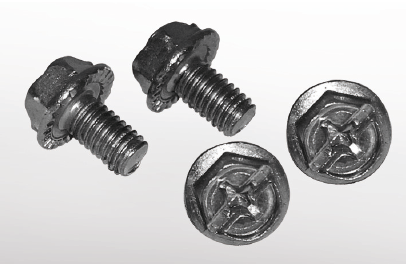

THREAD FORMING SCREWS
Thread-forming trilobe screws M5, to fix the raceways and other accessories to the predrilled plates series PS; delivered in 100 pcs packs.
• VTRM5-100









INNER PLATES PS
Sendzimir EN10142 galvanized sheet execution, they are designed to permit using the whole width of the cabinet; particularly recommended for cabinets with removable sides.
The vertical drills are spaced 12,5mm and the numbered adhesive strips to apply on the plate provide accurate reference on the fixing of the brackets to support the component-bearing DIN bars.
The use of these plates for battery-mounted cabinets does not require intermediate plates since they can be connected directly one to another.
Their width being the same as the cabinet inner space, we suggest to use the slide guides for side introduction.
Their use as plates for traditional wiring is also possible.
When adopting the SRS space-saving wiring system, it not necessary to use the PS plates since traditional plates can be used by drilling where the brackets for DIN bars support have to be secured.
To join the plates in the case of battery-mounted cabinets, a jointing kit has to be ordered.
• PSK001 – jointing kit for inner plates PS
