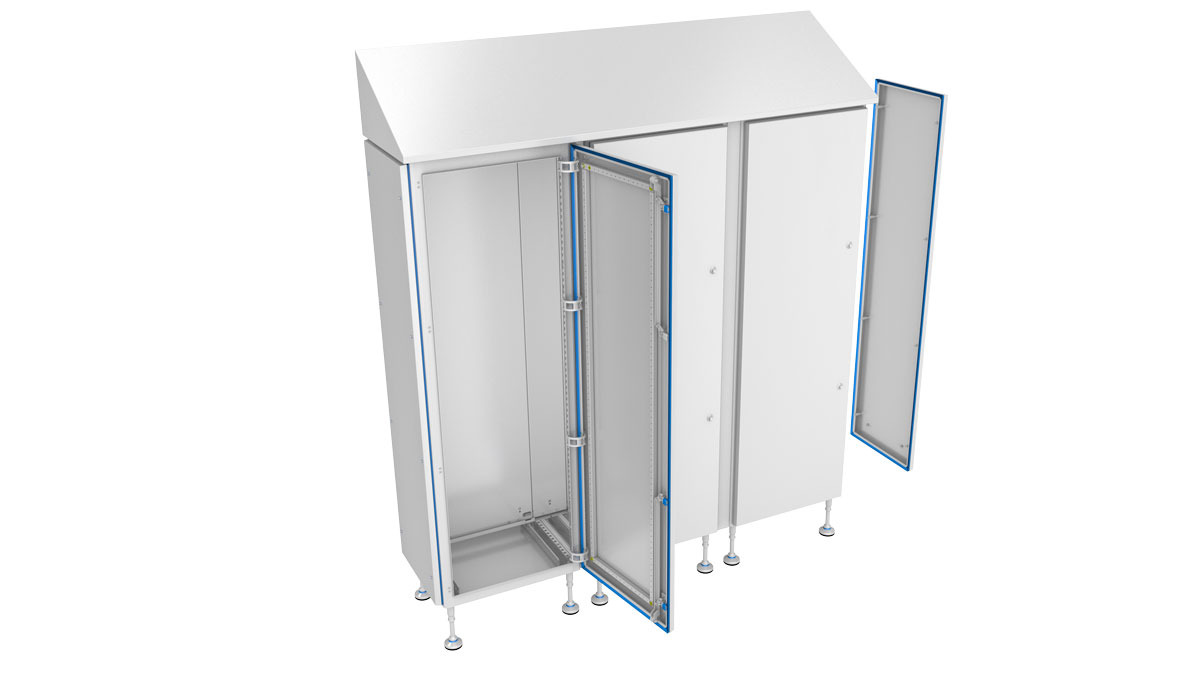

Armarios CXH

Home > Productos  > Linea Hygienic > Armarios CXH


Material: EN 1.4301 (TYPE 304) s/s, finely satin-finished and protected, thickness: door 20/10, envelope and sides 15/10

– Front door, full or with 3+3 laminate shatterproof glass, stiffening s/s inner frame, drilled to support equipment and/or secure cableways and accessories.
* The full door can also be equipped with partial windows and different materials can be used (polycarbonate or aluminium for silk printing) on demand.
– Rear side not accessible and ceiling no t removable, 30° slope roof to prevent objects being put on it and to facilitate cleaning and liquid drainage.
– Side panels, bolted and r emovable, to be ordered separately.
– Doorlock without recesses and/or gaps; outside surfaces made of EN 1.4404 (TYPE 316L) s/s, shaped as per sanitary regulations DIN EN 1672-2 and DIN EN 14 159; opening by removable key, zama execution.
– The cabinet bottom can be equipped with fairlead plates: enbloc, to be ordered separately.
– Maximum weight permitted on the door: 30 kg.
– Seal removable, cleanable and sterilizable, made of moulded silicone.
– Sendzimir inner plate to be ordered separately.
– Pre-arranged for earthing as per regulations in force.
– Protection degree: IP66.

tamaños exteriores material placa interna disponibilidad
ART. L H Porta H P L H
CXH0485 400 1800 2115 500 TYPE 304L a peticion
CXH0685 600 1800 2115 500 TYPE 304L 497 1692 a peticion
CXH0885 800 1800 2115 500 TYPE 304L 697 1692 a peticion
CXH1285* 1200 1800 2115 500 TYPE 304L 1100 1692 a peticion
