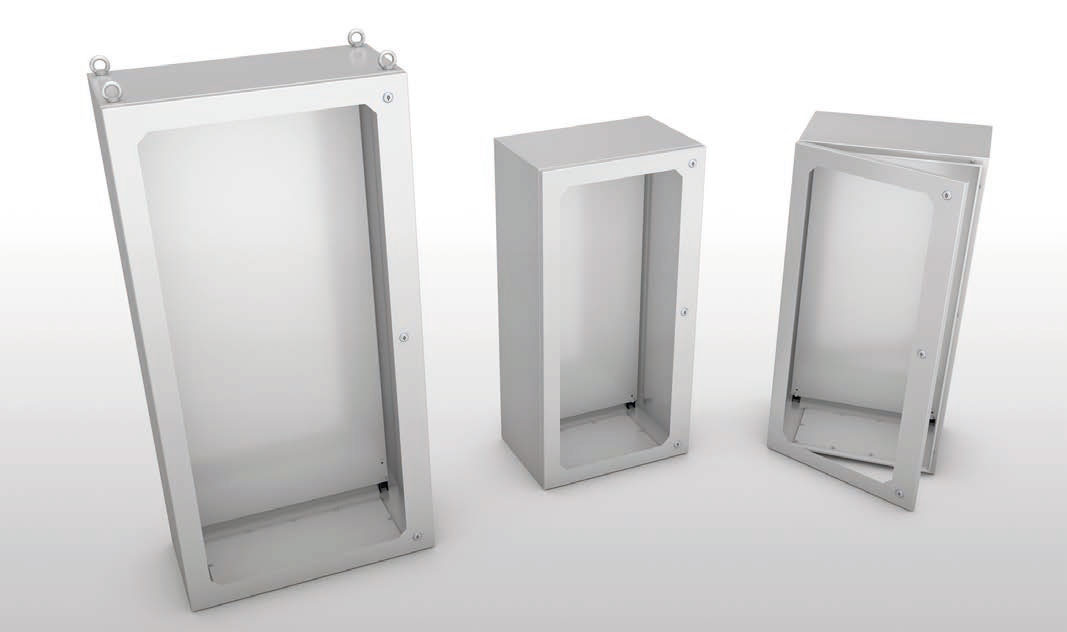

ENCLOSURES QVP
Material: EN 1.4301 (TYPE 304L) s/s finely satin-finished and protected on one side.
• Enclosure obtained from a single sheet, shaped by multi-bending of the envelope front edge.
• Fairlead plate: with seal (only for cabinets H.1200 and H.1600)
• Reversible door with 3+3 shatterproof laminated glass (in compliance with the applicable accident prevention regulations).
• Door lock: twin-comb type, standardized type Ø 3 for Low Tension, with s/s outside.
• S/s inner hinges, 120° opening as per CEI EN 60204-1 recommendations
• Seals of foamed polyurethane
• Inner plate of sendzimir EN 10142 galvanized sheet secured to the bottom of the enclosure by threaded pins M8 except for cabinets QLP616-QLP816 where the inner plate is set on guides hence adjustable on the depth.
• Pre-arranged for earthing as per applicable regulations
• Protection degree IP66
• Back: prearranged with four inserts H6 for wall mount (except for cabinets H=1600)
| ENCLOSURE | KIND OF DOOR | MOUNTING PLATES | SKETCH | ||||
| ART/ITEM | L | H | P | X | Y | ||
| QV46P/304 | 450 | 600 | 400 | with glass | 420 | 540 | DOWNLOAD |
| QV66P4/304 | 600 | 600 | 400 | with glass | 570 | 540 | DOWNLOAD |
| QV68P/304 | 600 | 800 | 400 | with glass | 570 | 740 | DOWNLOAD |
| QVP612 | 600 | 1200 | 400 | with glass | 570 | 1140 | DOWNLOAD |
| QVP616 | 605 | 1600 | 400 | with glass | 522 | 1522 | DOWNLOAD |
| QVP812 | 800 | 1200 | 400 | with glass | 770 | 1140 | DOWNLOAD |
| QVP816 | 805 | 1600 | 400 | with glass | 722 | 1522 | DOWNLOAD |
ITEMS QLV612 – 616 – 812 – 816 with fairlead plate
REMARK: All Enclosures with single door can be certified c UL us NEMA 4-4X on demand. Item QLP128/168 can be certified c UL us NEMA 12 on demand.
