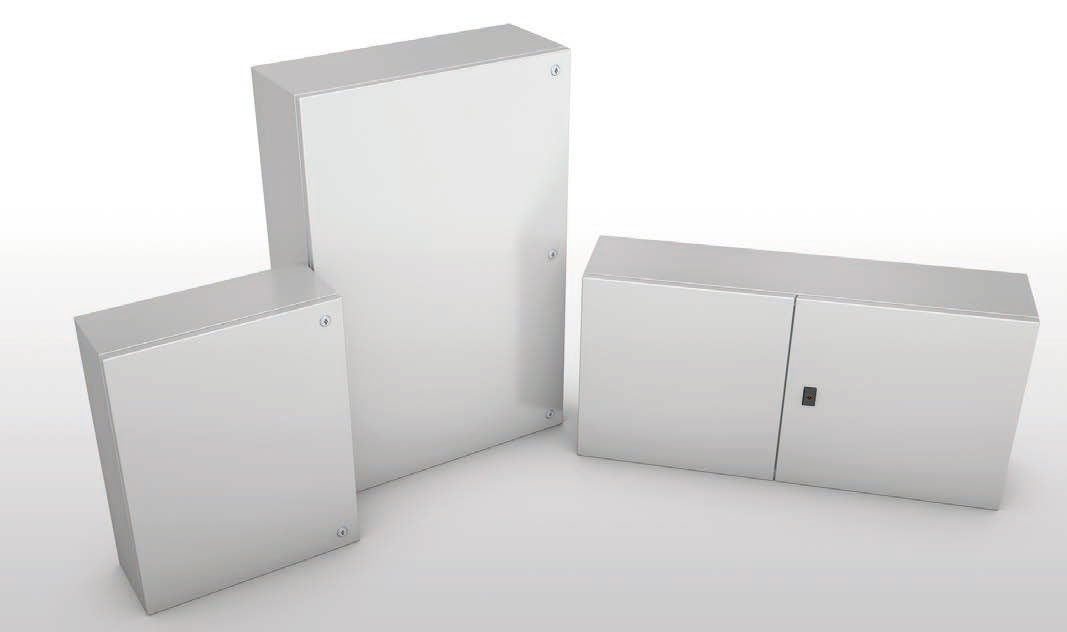

ENCLOSURES QL
• Material: EN 1.4301 (TYPE 304L 304L) or EN 1.4404 (TYPE 304L 316L) s/s, finely satin-finished scotch brite
and protected on 1 side.
• Enclosure obtained from a single sheet by multi-bend shaping of the enclosure front edge.
• Fairlead plate not provided.
• Full door.
• Doorlock with twin-comb mapping, standardized type Ø 3 for Low Tension, s/s outside.
• S/s inner hinges, 120° opening according to CEI EN 60204-1 recommendations.
• Maximum weight admissible on the door: 12 kg.
• Seal of foamed polyurethane
• Inner plate of sendzimir EN 10142 galvanized sheet, secured to the bottom of the cabinet by s/s M8 threaded bolts delivered with the cabinet.
• Pre-arranged for earthing as per applicable regulations.
• Protection degree: IP 66 for one-door cabinets; IP65 for two-door cabinets.
• Back: prearranged with four inserts M6 for wall mount system.
| ENCLOSURES | METERIAL | GASKET | DOOR TYPE | INNER PLATES | DESIGNS | ||||
| ART/ITEM | L | H | P | X | Y | ||||
| QL23/304 | 200 | 300 | 150 | Type 304L | polyurethane | blind | 170 | 240 | DOWNLOAD |
| QL33/304 | 300 | 300 | 180 | TYPE 304L | polyurethane | blind | 270 | 240 | DOWNLOAD |
| QL34/304 | 300 | 450 | 200 | TYPE 304L | polyurethane | blind | 270 | 390 | DOWNLOAD |
| QL36/304 | 300 | 600 | 250 | TYPE 304L | polyurethane | blind | 270 | 540 | DOWNLOAD |
| QL43/304 | 450 | 300 | 200 | TYPE 304L | polyurethane | blind | 420 | 240 | DOWNLOAD |
| QL44/304 | 450 | 450 | 200 | TYPE 304L | polyurethane | blind | 420 | 390 | DOWNLOAD |
| QL46/304 | 450 | 600 | 250 | TYPE 304L | polyurethane | blind | 420 | 540 | DOWNLOAD |
| QL46P/304 | 450 | 600 | 400 | TYPE 304L | polyurethane | blind | 420 | 540 | DOWNLOAD |
| QL64/304 | 600 | 450 | 250 | TYPE 304L | polyurethane | blind | 570 | 390 | DOWNLOAD |
| QL66/304 | 600 | 600 | 250 | TYPE 304L | polyurethane | blind | 570 | 540 | DOWNLOAD |
| QL66P/304 | 600 | 600 | 300 | TYPE 304L | polyurethane | blind | 570 | 540 | DOWNLOAD |
| QL66P4/304 | 600 | 600 | 400 | TYPE 304L | polyurethane | blind | 570 | 540 | DOWNLOAD |
| QL67/304 | 600 | 750 | 250 | TYPE 304L | polyurethane | blind | 570 | 690 | DOWNLOAD |
| QL68P/304 | 600 | 800 | 400 | TYPE 304L | polyurethane | blind | 570 | 740 | DOWNLOAD |
| QL69/304 | 600 | 900 | 250 | TYPE 304L | polyurethane | blind | 570 | 840 | DOWNLOAD |
| QL77/304 | 750 | 750 | 300 | TYPE 304L | polyurethane | blind | 720 | 690 | DOWNLOAD |
| QL710/304 | 750 | 1000 | 300 | TYPE 304L | polyurethane | blind | 720 | 940 | DOWNLOAD |
| QL86/304 | 800 | 600 | 300 | TYPE 304L | polyurethane | blind | 770 | 540 | DOWNLOAD |
| QL812/304 | 800 | 1200 | 320 | TYPE 304L | polyurethane | blind | 770 | 1140 | DOWNLOAD |
| QL106/304 | 1000 | 600 | 300 | TYPE 304L | polyurethane | blind | 970 | 540 | DOWNLOAD |
| QL107A/304 | 1000 | 750 | 300 | TYPE 304L | polyurethane | blind | 970 | 690 | DOWNLOAD |
| QL126A/304 | 1200 | 600 | 300 | TYPE 304L | polyurethane | blind | 1170 | 540 | DOWNLOAD |
| QL33S/316 | 300 | 300 | 180 | TYPE 316L | silicone | blind | 270 | 240 | DOWNLOAD |
| QL34S/316 | 300 | 450 | 200 | TYPE 316L | silicone | blind | 270 | 390 | DOWNLOAD |
| QL36S/316 | 300 | 600 | 250 | TYPE 316L | silicone | blind | 270 | 540 | DOWNLOAD |
| QL43S/316 | 450 | 300 | 200 | TYPE 316L | silicone | blind | 420 | 240 | DOWNLOAD |
| QL44S/316 | 450 | 450 | 200 | TYPE 316L | silicone | blind | 420 | 390 | DOWNLOAD |
| QL46S/316 | 450 | 600 | 250 | TYPE 316L | silicone | blind | 420 | 540 | DOWNLOAD |
| QL64S/316 | 600 | 450 | 250 | TYPE 316L | silicone | blind | 570 | 390 | DOWNLOAD |
| QL66S/316 | 600 | 600 | 250 | TYPE 316L | silicone | blind | 570 | 540 | DOWNLOAD |
| QL67S/316 | 600 | 750 | 250 | TYPE 316L | silicone | blind | 570 | 690 | DOWNLOAD |
| QL69S/316 | 600 | 900 | 250 | TYPE 316L | silicone | blind | 570 | 840 | DOWNLOAD |
| QL77S/316 | 750 | 750 | 300 | TYPE 316L | silicone | blind | 720 | 690 | DOWNLOAD |
| QL710S/316 | 750 | 1000 | 300 | TYPE 316L | silicone | blind | 720 | 940 | DOWNLOAD |
NOTE: QL33 – QL34 – QL43 : one only doorlock – QL812 : three doorlocks
QL107A/304 – QL126: two doors without central upright
Protezione IK10 solo per armadietti porta singola
UL certification to be requested with the order
