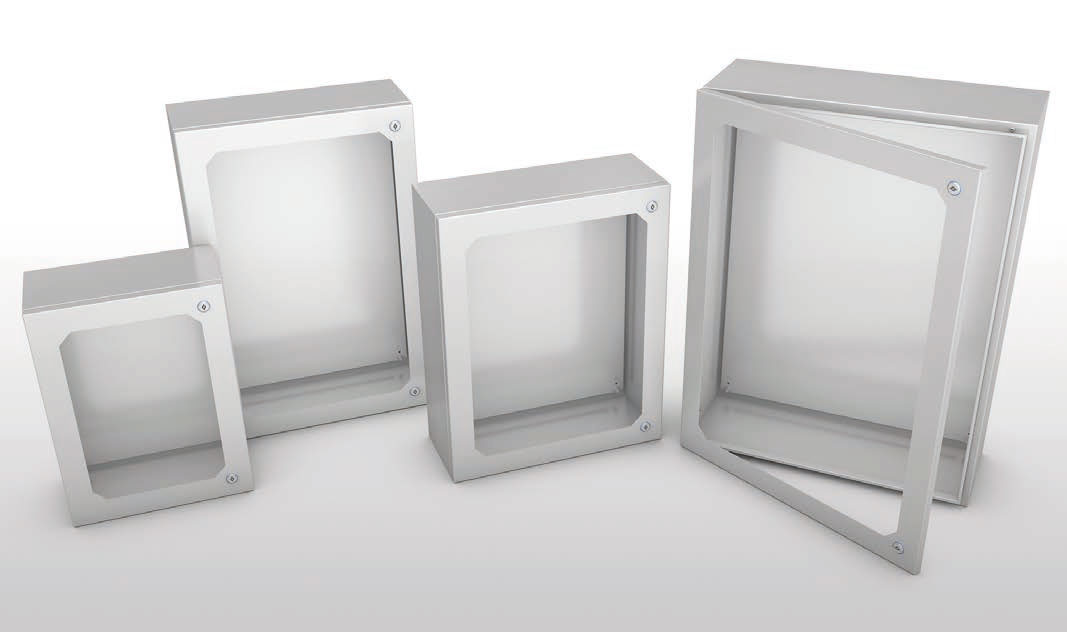

ENCLOSURES QV
• Material: EN 1.4301 (TYPE 304L) s/s finely satin-finished and protected on one side.
• Enclosure obtained from a single sheet shaped by multi-bending of the envelope front edge.
• Fairlead plate : not provided
• Door with 3+3-layer shatterproof glass (compliant with the applicable accident-prevention regulations).
* The sight glass is made of polycarbonate for models QV33-QV34-QV43.
• Doorlock:: twin-comb, standardized type Ø 3 for Low Tension; outside parts made of s/s.
• Inner hinges made of s/s: 120° opening according to VDI 3231 recommendations.
• Seal of foamed polyurethane
• Inner plate made of sendzimir EN 10142 galvanized sheet, secured to the bottom of the cabinet by s/s threaded pins M8, delivered with the cabinet.
• Pre-arranged for earthing as per applicable rules
• Protection degree: IP66
• Back prearranged with four inserts M6 for wall mount system.
| ENCLOSURES | MATERIAL | KIND OF DOOR | MOUNTING PLATES | SKETCH | ||||
| ART/ITEM | L | H | P | X | Y | |||
| QV33/304L | 300 | 300 | 180 | TYPE 304L | with glass | 270 | 240 | DOWNLOAD |
| QV34/304L | 300 | 450 | 200 | TYPE 304L | with glass | 270 | 390 | DOWNLOAD |
| QV36/304L | 300 | 600 | 250 | TYPE 304L | with glass | 270 | 540 | DOWNLOAD |
| QV43/304L | 450 | 300 | 200 | TYPE 304L | with glass | 420 | 240 | DOWNLOAD |
| QV44/304L | 450 | 450 | 200 | TYPE 304L | with glass | 420 | 390 | DOWNLOAD |
| QV46/304L | 450 | 600 | 250 | TYPE 304L | with glass | 420 | 540 | DOWNLOAD |
| QV64/304L | 600 | 450 | 250 | TYPE 304L | with glass | 570 | 390 | DOWNLOAD |
| QV66/304L | 600 | 600 | 250 | TYPE 304L | with glass | 570 | 540 | DOWNLOAD |
| QV67/304L | 600 | 750 | 250 | TYPE 304L | with glass | 570 | 690 | DOWNLOAD |
| QV69/304L | 600 | 900 | 250 | TYPE 304L | with glass | 570 | 840 | DOWNLOAD |
| QV77/304L | 750 | 750 | 300 | TYPE 304L | with glass | 720 | 690 | DOWNLOAD |
| QV710/304L | 750 | 1000 | 300 | TYPE 304L | with glass | 720 | 940 | DOWNLOAD |
| QV812/304L | 800 | 1200 | 320 | TYPE 304L | with glass | 770 | 1140 | DOWNLOAD |
| QV33/316 | 300 | 300 | 180 | TYPE 316L | with glass | 270 | 240 | DOWNLOAD |
| QV34/316 | 300 | 450 | 200 | TYPE 316L | with glass | 270 | 390 | DOWNLOAD |
| QV36/316 | 300 | 600 | 250 | TYPE 316L | with glass | 270 | 540 | DOWNLOAD |
| QV43/316 | 450 | 300 | 200 | TYPE 316L | with glass | 420 | 240 | DOWNLOAD |
| QV44/316 | 450 | 450 | 200 | TYPE 316L | with glass | 420 | 390 | DOWNLOAD |
| QV46/316 | 450 | 600 | 250 | TYPE 316L | with glass | 420 | 540 | DOWNLOAD |
| QV64/316 | 600 | 450 | 250 | TYPE 316L | with glass | 570 | 390 | DOWNLOAD |
| QV66/316 | 600 | 600 | 250 | TYPE 316L | with glass | 570 | 540 | DOWNLOAD |
| QV67/316 | 600 | 750 | 250 | TYPE 316L | with glass | 570 | 690 | DOWNLOAD |
| QV69/316 | 600 | 900 | 250 | TYPE 316L | with glass | 570 | 840 | DOWNLOAD |
| QV77/316 | 750 | 750 | 300 | TYPE 316L | with glass | 720 | 690 | DOWNLOAD |
| QV710/316 | 750 | 1000 | 300 | TYPE 316L | with glass | 720 | 940 | DOWNLOAD |
ITEMS 33 – 34 – 43 : only 1 central lock
REMARK: All Enclosures with single door can be certified c UL us NEMA 4-4X on demand. Item QL107/304L can be certified c UL us NEMA 12 on demand.
