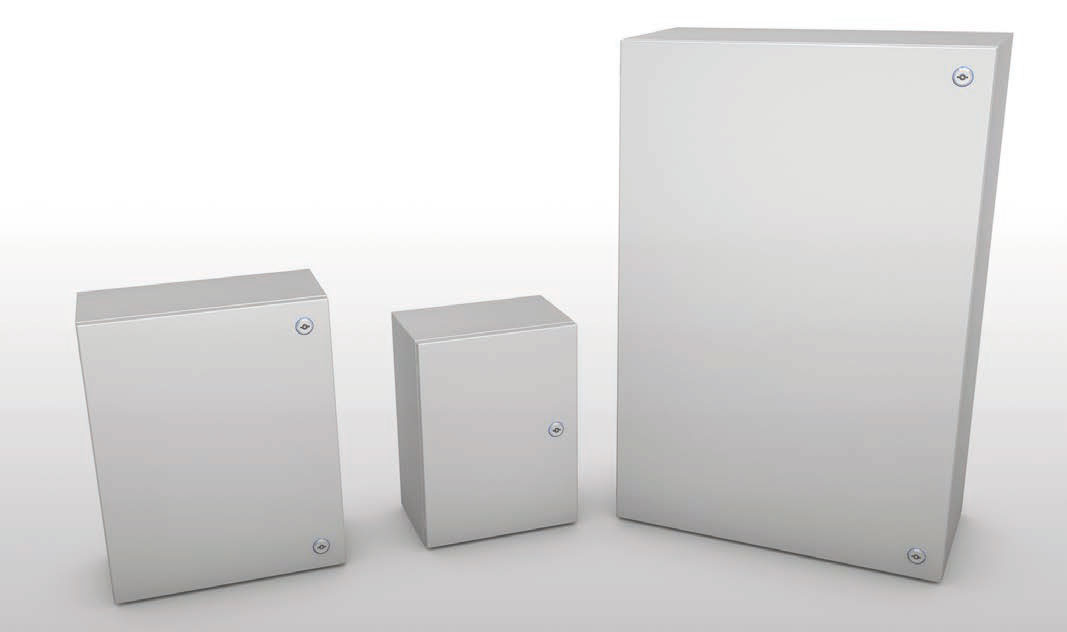

ENCLOSURES QS
• Material: En 1.4301 (TYPE 304L) s/s finely satin-finished and protected on one side.
* Enclosure obtained from one single sheet, shaped to obtain the seal labyrinth between enclosure and door.
• Inside: threaded pins M8 to fix the plate and its rest.
• Full door.
• Twin-comb locks of the standardized type Ø 3 for Low Voltage, chromium plated.
• S/s inner hinges,120° opening according to CEI EN 60204-1 recommendations
• Maximum load admitted on the door: 8 kg.
• Seal of foamed polyurethane.
• Inner plate of EN 10142 sendzimir galvanized sheet secured to the bottom of the container by M8 threaded pins delivered with the cabinet.
• Prearranged for earthing according to the regulations in force.
* Protection degree IP66
• Back: prearranged with four inserts M6 for wall mount
| ENCLOSURES | KIND OF DOOR | MOUNTING PLATES | SKETCH | ||||
| ART/ITEM | L | H | P | X | Y | ||
| QS034 | 300 | 400 | 200 | cieca / blind | 270 | 340 | DOWNLOAD |
| QS045 | 400 | 500 | 200 | cieca / blind | 370 | 440 | DOWNLOAD |
| QS056 | 500 | 600 | 250 | cieca / blind | 470 | 540 | DOWNLOAD |
| QS068 | 600 | 800 | 250 | cieca / blind | 570 | 740 | DOWNLOAD |
| QS069 | 600 | 900 | 300 | cieca / blind | 570 | 840 | DOWNLOAD |
ART. QS034 only 1 central lock
