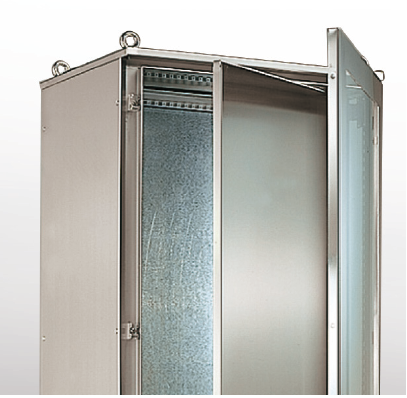

INNER DOORS
EN 1.4301 (TYPE 304L) execution, finely satin-finished and protected, thickness 20/10, they come in assembling kit and are used to assemble equipment inside the cabinets.
The gap between inner door and door is adjustable on two depth: 65 or 110mm. Can be hinged either on the right or the left side.
Maximum load admitted on the door 30Kg. Protection degree IP20 (IP54 on request). Drilling possible on request. For cabinets L.1200 and L.1600 use inner doors L.600 or L.800 adding the appropriate upright; in this case, it is recommended to not use the enbloc fairlead plate that is difficult to remove.
Central upright removable, to be use for installation of inner doors in cabinets L. 1200 and L. 1600
• MCC16 – Central upright for cabinets CC height 1640
• MCC18 – Central upright for cabinets CC height 1840
OTHER ACCESSORIES
in the section “accessories for CABINETS”
Ims System, Slide Guides, Fairlead Plates, Diagram Holding Pockets, Hoisting Eyebolts, Taps, Srs Cabling System, Transformer Holding Section Bars, Cable Fastening Cross Members, Anti-Close Device, Cage Nuts, Systems For Modular Switchgears, Inner Plates Type Pa, Adjustable Feet, Cross Members For Door, Electroconductive Gasket, Self Tapping Screws 5,5, Intermediate Plate, Skirting, Work Tabletop, Door Locks, Lamps
in the section “accessories for SMALL CABINETS”
Overdoors, Cable Glands
in the section “Air conditioning”
Air Conditioning, Ventilation
