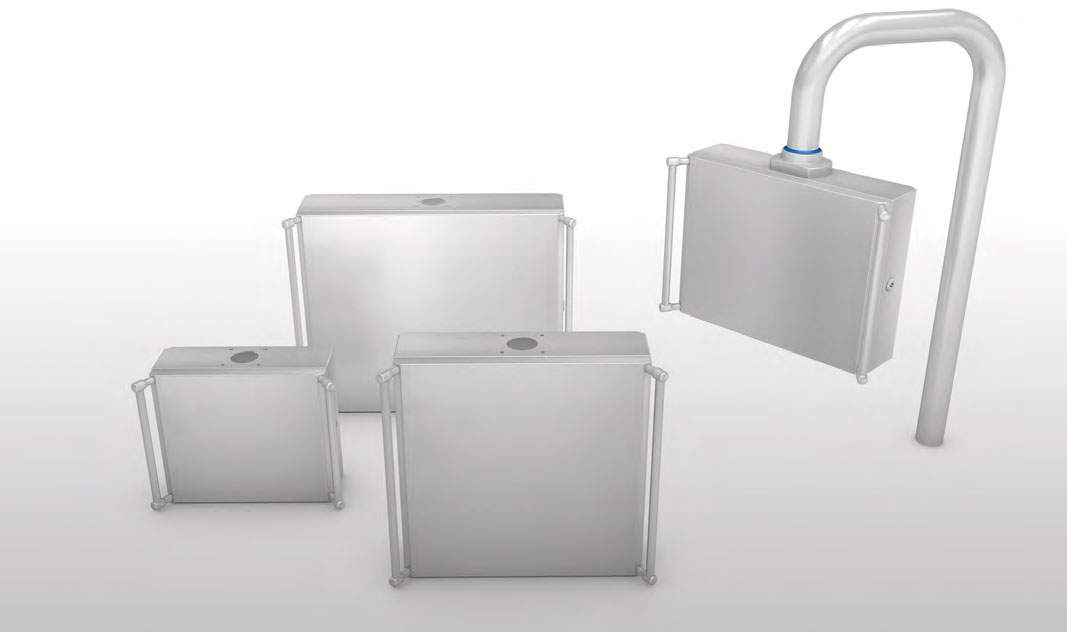

Control Boxes Series BK

CONTROL BOX SERIES BK
• EN 1.4301 (TYPE 304L) s/s execution, finely satin-finished and protected.
• Enclosure obtained from a single sheet, thickness 15/10 shaped by multiple bends of the
front edge, door with radial corners.
• Enclosures drilled for the assembling of articulated arms type TJ-TS-TL with rotary joint code GKS.
• Full door, hinged, side lock to take maximum advantage of the drilling space.
• Inner plate not provided.
• Ergonomic grip handles, TYPE 304L s/s, available on request.
• Inner hinges, s/s: 120° opening as per CEI EN 60204-1 recommendations
• Foamed polyurethanic bi-component seal
• Prearranged for earthing according to the regulations in force.
• Protection degree IP66
• Twin-comb lock of the standardized type Ø 3 for Low Voltage, s/s outside.
• Joint GKS included



OUTSIDE SIZES USEFUL SURFACES OVERALL DIMENSIONS WITH HANDLES
ART. A B C D E F G H SKETCHES
BK33AM  350  300  130  240  240  102  165  400 DXF – STEP
BK43AM  450  350  130  340  290  102  165  500 DXF – STEP
BK44AM  450  450  130  340  390  102  165  500 DXF – STEP
BK54AM  520  450  130  410  390  102  165  570 DXF – STEP
BK55AM  500  500  130  390  440  102  165  550 DXF – STEP
BK65AM  600  500  150  490  440  122  185  650 DXF – STEP
BK75AM  675  550  150  565  490  122  185  650 DXF – STEP



OUTSIDE SIZES USEFUL SURFACES OVERALL DIMENSIONS WITHOUT HANDLES
ART. A B C D E F  SKETCHES
BK33A  350  300  130  240  240  102 DXF – STEP
BK43A  450  350  130  340  290  102 DXF – STEP
BK44A  450  450  130  340  390  102 DXF – STEP
BK54A  520  450  130  410  390  102 DXF – STEP
BK55A  500  500  130  390  440  102 DXF – STEP
BK65A  600  500  150  490  440  122 DXF – STEP
BK75A  675  550  150  565  490  122 DXF – STEP
