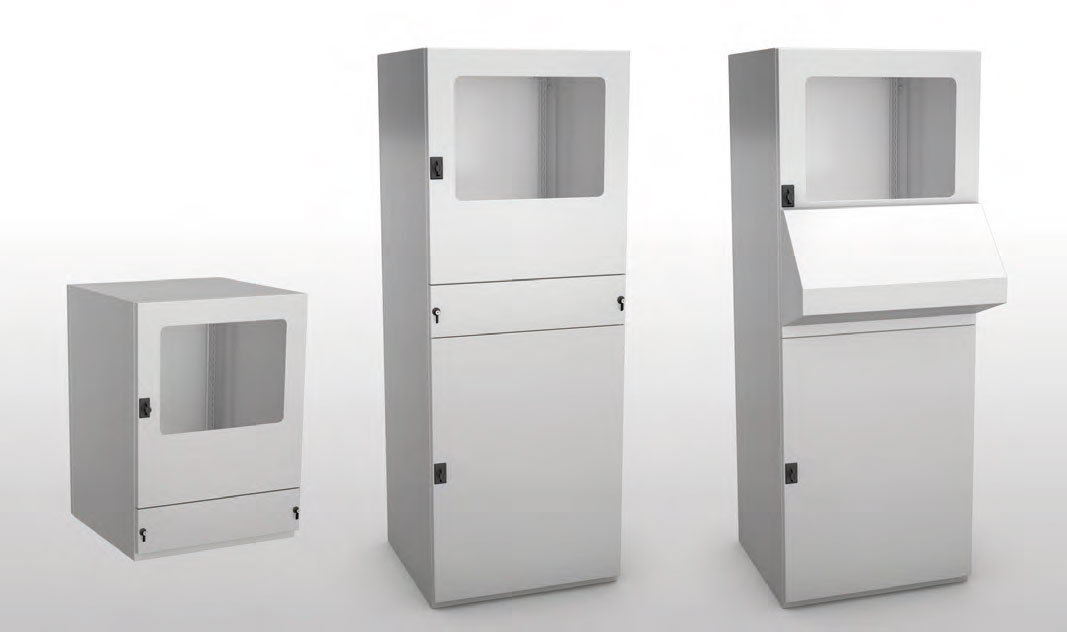

COMPUTER CABINET APC
• Made of EN 1.4301 (TYPE 304L) s/s, satin- finishing (roughness Ra < 0.38 micron).
• Self-bearing frame, closed, welded in inert atmosphere. All edges feature 25 mm spaced drills to accommodate front setting M5 and M6 cages for accessories fixing.
• right-hand hinged front doors, s/s inner hinges.120° opening as per CE EN 60204-1. The upper door is for video protection and includes a laminate safety glass, 3+3 mm thick for videos ranging from 14” to 20” in size depending on the type and position of the screen. The lower door is full and rests 28 mm above the frame bottom edge to allow easy opening even when no skirting plate, feet or wheels are installed.
• The locks are of the multi-point ratched type, with steel rods and wing nut keylocks.
• Bolted rear panel, fitted with special sucker-type spacers in hard rubber as tightness and leak-proof seal. The rear panel can be replaced by a hinged door, on request.
• Protection degree: IP65
• Heat dissipation: when the operating conditions are not too heavy (one PC with screen and printer for a total of 300 W), with ∆t 15°C and 3 sides and the ceiling of the cabinet free, the surface can dissipate all of the installed power. For more detailed calculations, see section “CONDITIONING AND VENTILATION”

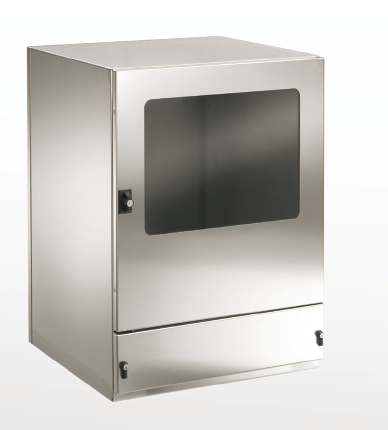

COMPUTER CABINETS APC608TE
Single front door base cabinet with pull-out keyboard table and no lower compartment for printer.
The pull-out table, for keyboard fixing (max sizes 480×190 mm) when in the open position allows the use of the keyboard while maintaining the IP20 protection degree for the cabinet. The front board of the pull-out table, tilting, can be used as mouse rest.

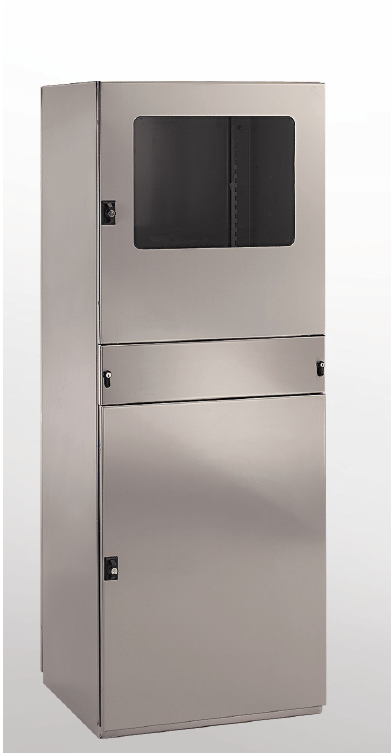

COMPUTER CABINETS APC616TE
Two front doors base cabinet with pull-out keyboard table and lower compartment for printer housing
The pull-out plane, for keyboard fixing (max sizes 480×190 mm) when in the open position allows the use of the keyboard while maintaining the IP20 protection for the cabinet. The front board of the pull-out panel, tilting, can be used as mouse rest. The lower compartment can accommodate shelves, drawers, inner plates or 19” rack section irons, all optional and available on request.

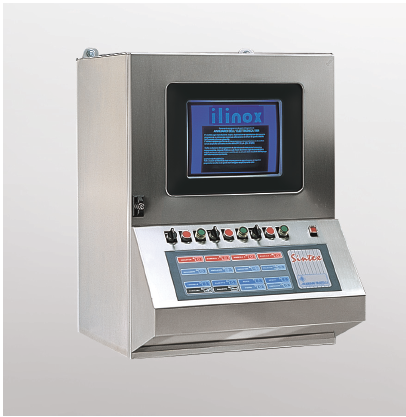

COMPUTER CABINET APC608C
Single front door cabinet, with fixed console and without lower compartment for printer.
The console can be used to support exposed conventional keyboards or to accommodate recessed industrial keyboards (the console is usually delivered blind: drilling, if the need be, is possible if requested with the order).

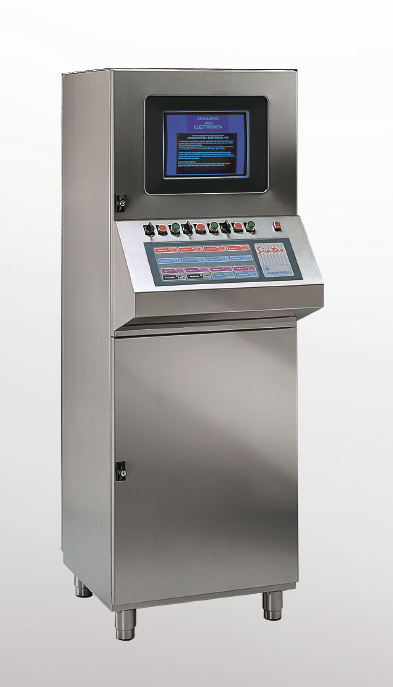

COMPUTER CABINETS APC616TC
Base cabinet with two front doors, fixed console and lower compartment for printer.
The console can be used to support exposed conventional keyboards or to accommodate recessed industrial keyboards (the console is usually delivered blind: drilling, if the need be, is possible if requested with the order)
ART/ITEM | L | H | P | SKETCH |
APC608C | 605 | 833 | 600 | DOWNLOAD |
APC608TE | 605 | 833 | 600 | DOWNLOAD |
APC616C | 605 | 1632 | 600 | DOWNLOAD |
APC616TE | 605 | 1632 | 600 | DOWNLOAD |
