Boîtiers de commande BKH

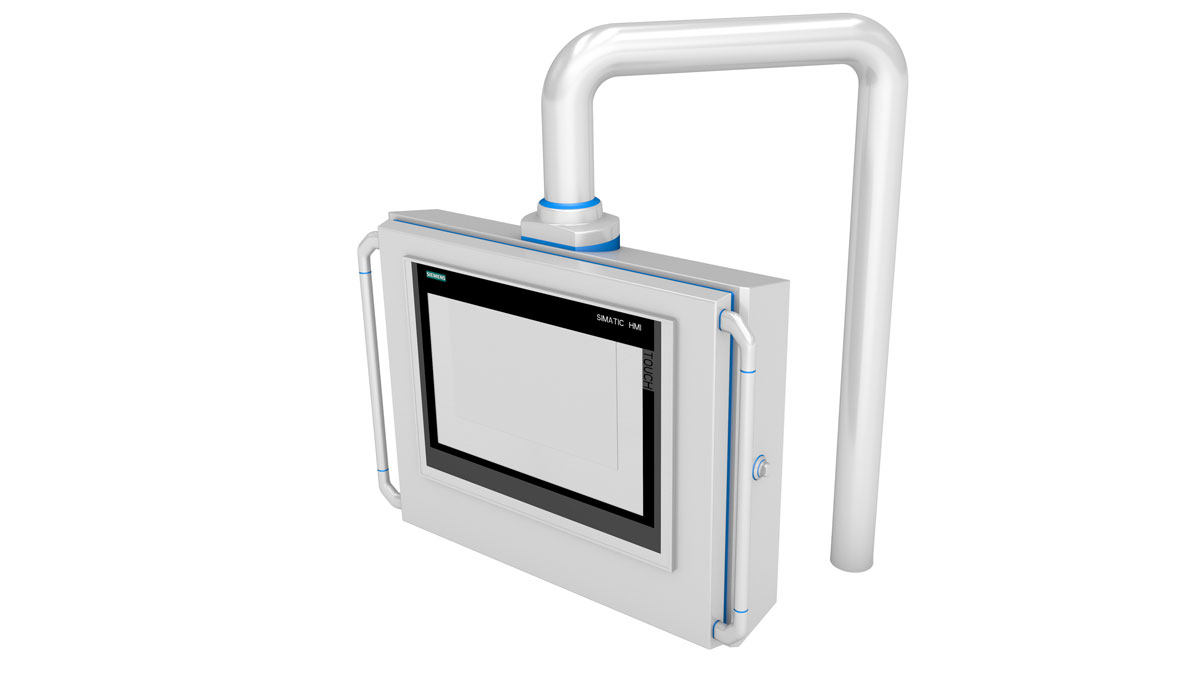

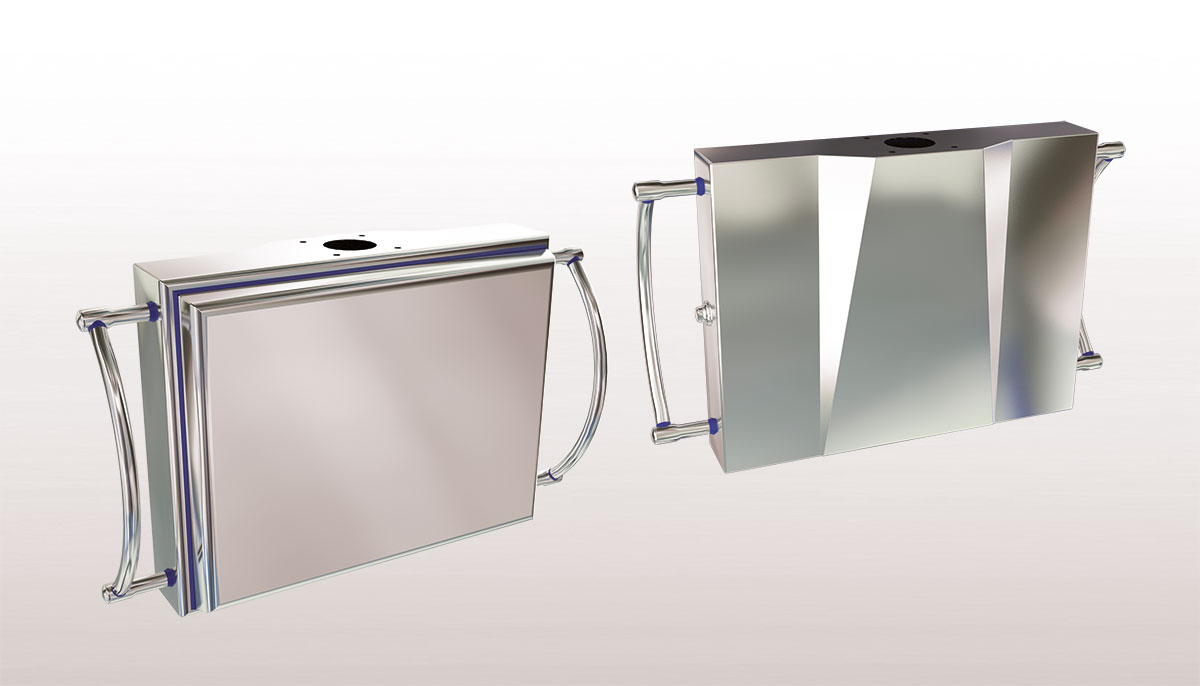

CONTROL BOX HYGIENIC SERIES BKH

– EN 1.4301 (TYPE 304) s/s execution, finely satin-finished and protected.
– Enclosure obtained from a single sheet, thickness 15/10 shaped by multiple bends of the rear edge, door with radial corners.
– Enclosures drilled for the assembling of articulated arms type TJ-TS-TL with rotary joint code GKS.
– Full door, hinged, side lock to take maximum advantage of the drilling space.
– Inner plate not provided.
– Ergonomic grip handles, TYPE 304 s/s
– Inner hinges, s/s: 100° opening as per CEI EN 60204-1 recommendations.
– Seal removable, cleanable and s terilizable, made of moulded silicone.
– Prearranged for earthing according to the regulations in force.
– Protection degree IP66.
– Doorlock without recesses and/or gaps; outside surfaces made of EN 1.4404 (TYPE 316L) s/s, shaped as per sanitary regulations DIN EN 1672-2 and DIN EN 14 159; opening by removable key, zama execution.
