Schränkchen QV

Kleine Schränkche QV

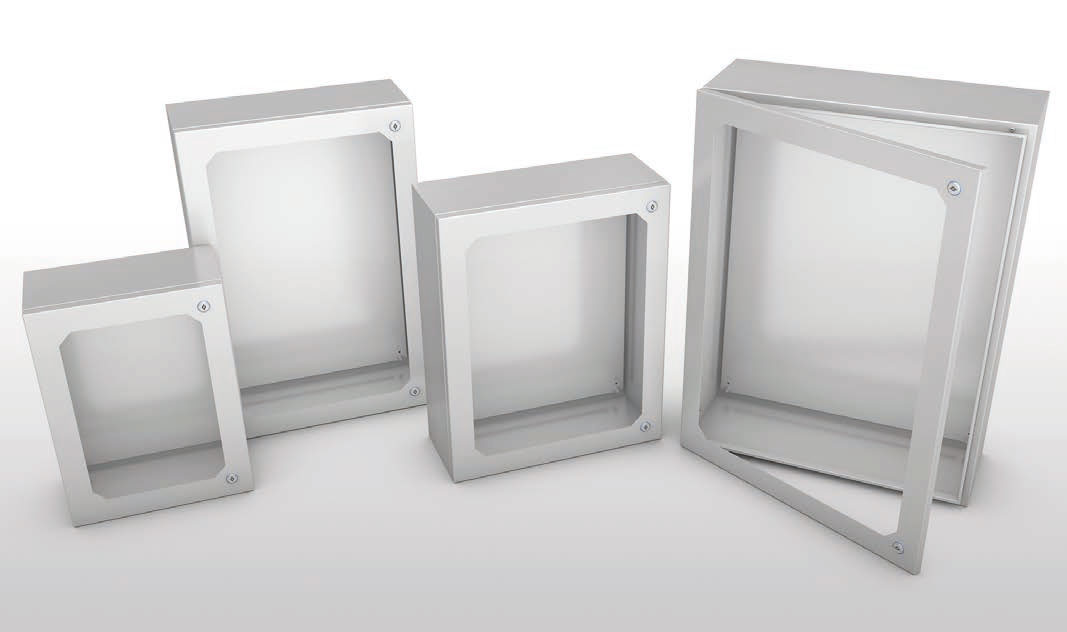

KLEINE SCHRÄNKCHE QV
– Material: Edelstahl EN 1.4301 (TYPE 304L) oder EN 1.4404 (TYPE 304L) satiniert scotch brite und eine Seite geschützt.
– Der Schrank ist aus einem durchgehenden Blech gefertigt, die Vorderkanten des Schranks sind zum Schutz vor eindringendem Wasser, zwischen Schrank und Tür, mehrfach gefaltet.
– Kabelführungsplatte nicht vorgesehen.
– Tür mit Verbundglas 3+3 bruchfest (entsprechend den gültigen Vorschriften zum Unfallschutz).
– Für die Modelle QV33-QV34-QV43 Kontrollfenster aus Polykarbonat.
– Schlösser mit Doppelblatt Standardtyp Ø 3 mit externen Teilen aus Edelstahl.
– Innenscharniere aus Edelstahl: Öffnung um 120° entsprechend den Normen VDI 3231.
– Dichtung aus Polyurethanschaum.
– Ausgestattet mit einer sendzimirverzinkten Innenplatte (EN 10142) und mit speziellen Ilinox-Gewindekopf-Schrauben am Boden des Schranks befestigt.
– Entsprechend den gültigen Vorschriften für die Erdung vorbereitet.
– Schutzklasse: IP66.
– Auf der Rückseite 4 Einsätze M6 zur Wandbefestigung.



SCHRÄNKCHE MATERIAL TYP TÜR INNENPLATTE ZEICHNUNGEN
ART/ITEM L H P X Y
QV33/304 300 300 180 TYPE 304L Glastür 270 240 DOWNLOAD
QV34/304 300 450 200 TYPE 304L Glastür 270 390 DOWNLOAD
QV36/304 300 600 250 TYPE 304L Glastür 270 540 DOWNLOAD
QV43/304 450 300 200 TYPE 304L Glastür 420 240 DOWNLOAD
QV44/304 450 450 200 TYPE 304L Glastür 420 390 DOWNLOAD
QV46/304 450 600 250 TYPE 304L Glastür 420 540 DOWNLOAD
QV64/304 600 450 250 TYPE 304L Glastür 570 390 DOWNLOAD
QV66/304 600 600 250 TYPE 304L Glastür 570 540 DOWNLOAD
QV67/304 600 750 250 TYPE 304L Glastür 570 690 DOWNLOAD
QV69/304 600 900 250 TYPE 304L Glastür 570 840 DOWNLOAD
QV77/304 750 750 300 TYPE 304L Glastür 720 690 DOWNLOAD
QV710/304 750 1000 300 TYPE 304L Glastür 720 940 DOWNLOAD
QV812/304 800 1200 320 TYPE 304L Glastür 770 1140 DOWNLOAD
QV33/316 300 300 180 TYPE 316L Glastür 270 240 DOWNLOAD
QV34/316 300 450 200 TYPE 316L Glastür 270 390 DOWNLOAD
QV36/316 300 600 250 TYPE 316L Glastür 270 540 DOWNLOAD
QV43/316 450 300 200 TYPE 316L Glastür 420 240 DOWNLOAD
QV44/316 450 450 200 TYPE 316L Glastür 420 390 DOWNLOAD
QV46/316 450 600 250 TYPE 316L Glastür 420 540 DOWNLOAD
QV64/316 600 450 250 TYPE 316L Glastür 570 390 DOWNLOAD
QV66/316 600 600 250 TYPE 316L Glastür 570 540 DOWNLOAD
QV67/316 600 750 250 TYPE 316L Glastür 570 690 DOWNLOAD
QV69/316 600 900 250 TYPE 316L Glastür 570 840 DOWNLOAD
QV77/316 750 750 300 TYPE 316L Glastür 720 690 DOWNLOAD
QV710/316 750 1000 300 TYPE 316L Glastür 720 940 DOWNLOAD

QV33 – QV34 – QV43: mit einem Zentralschloss, Inspektionsfenster aus Polykarbonat Stärke 3 mm
QV812: mit drei Schlössern
Zertifizierung UL bei Auftragsvergabe anfordern
